NOYAFA brand ! Portable RJ11 RJ45 BNC USB LCD Cable Length Tester

FOB Reference Price:Get Latest Price
US $40-45 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
NOYAFA
Model Number:
NF-300
Color:
Gray
Certificate:
CE
Power:
DC 9V battery
Function:
Cable hunting finding and cable length testing
Interface type:
RJ11 RJ45 BNC USB
Cable length:
2000m
Feature:
RJ45 RJ11 Cable length test
Dimension:
185mm * 80mm * 32mm
Product name:
Cable length tester
Model:
NF-300
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Packaging Details: Cloth bag with Box & Carton for shipping ( 30pcs / carton)
Delivery Detail: Base on the quantity ordered
Port
Shekou / Yantian
Lead Time :
Depends on the quantity ordered (1-7 work days)

Portable RJ11 RJ45 BNC USB LCD Cable Length Tester  NF-300



 Applications Include:

* Trace and locate  RJ45 (STP / 4-core) , RJ11,USB,BNC cables.
* Anti-jamming, capable of working on the exchanger and PC startup.
* Measure cable length for RJ45,BNC cable.
* Check open, short, cross, crosstalk for ,RJ45, BNC Cable.
* Locate and breakage point accurately.

* Earphone permits use in noisy environments.



Accessories Included:

* Earphone x 1 set
* Battery x 2 sets
* Telephone line adapter x 1 set
* Network cable adapter x 1 set
* Coax cable adapter x 1 set

* Cable clips x 1 set



Technical indexes:

NF-300 Transmitter specifications
 LCD screen 53x25mm
 Tone frequency 225Hz
 The Max. distance of tracing cable  Electrified wire:3000m
 Non-electrified wire: 2000m
 The Max. distance of cablemapping 2500m
 The Max. distance of cable length testing 1000m
 Trace cable coonected to switch Anti-jamming
 Tone mode 2 Tones, adjustable
 Compatible with connectors RJ11,RJ45,BNC,USB
 LED lights display Wiremap, tone, tracing
 Cable map indication LCD (#1- #8)
 Shielded indication LCD (#9)
 Voltage protection AC 60V/DC 42V
 Low battery display LCD (6.5V)
 Battery type DC9.0V(NEDA 1604/6F22 DC9V) x 1pc
 Dimensions (LxWxD) 185 x 80 x 32mm
 NF-300 Receiver specifications
 Frequency 225kHz
 The Max. working current Less than 70mA
 Earphone jack 1
 LED illumination 2 LEDs
 Battery type DC9.0V(NEDA 1604/6F22 DC9V) x 1pc
 Dimensions (LxWxD) 218 x 46 x 29mm
 NF-300 Remote unit specifications
 Compatible with connectors RJ11,RJ45,BNC,USB
 Dimensions (LxWxD) 107 x 30 x 24mm

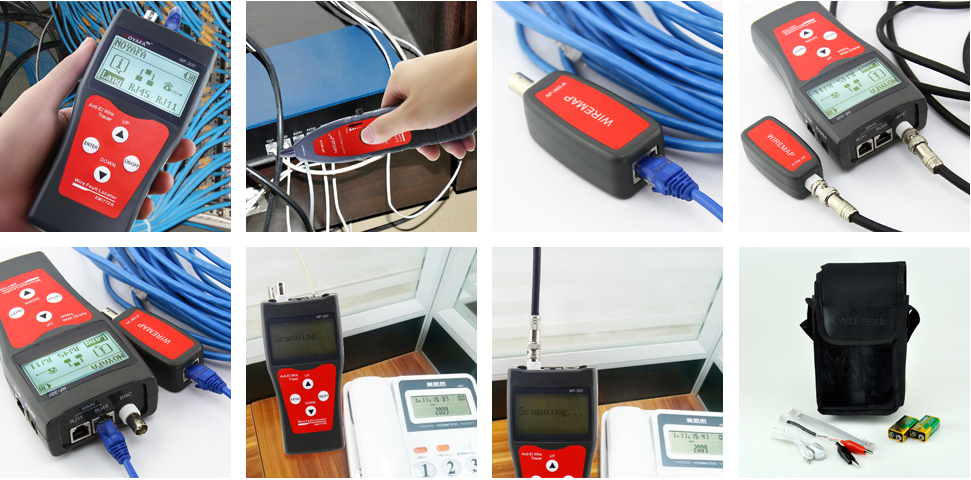

Product pictures:




Application products:
