NF-868W cable finder tone generator / cable length tester with 8 remotes

FOB Reference Price:Get Latest Price
  • 10 - 99 Pieces
    US $75.00
  • >=100 Pieces
    US $65.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
NOYAFA
Model Number:
NF-868W
Power:
Electronic
Usage:
cabling
Certificate:
CE
Warranty:
1 Year
Memory function:
Yes
Remote units:
8pcs
Test length:
Lan /Tel/ Coax / usb cable
Tracing type:
Lan /Tel/ Coax / usb cable
Wiremap Type:
Lan /Tel/ Coax / usb cable
Accuracy:
98%
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carry bag & Giftbox
GW: 20.0KG 24pcs/ctn
Port
Shenzhen
Lead Time :
1-7 workdays

Main Features

1. Check wiremap: open, short , cross connection, reverse connection.
2.  To perform crosstalk test on network cable to solve the potential problem of slow speed .
3. Measure length of network cable, coaxial cable, telephone cable and USB cable .
4. Cable tracing on exchanger or Router with power-on.
5.  Quickly find the target wire or cable among kinds of wires.
6.  Functions of storage and memory.
7.  8 remote units are included.

8.  Automatic delay power on-off and backlight function.
9.  Self-test function shall automatically make compensation due to change of battery level and ambient temperature.


Specification

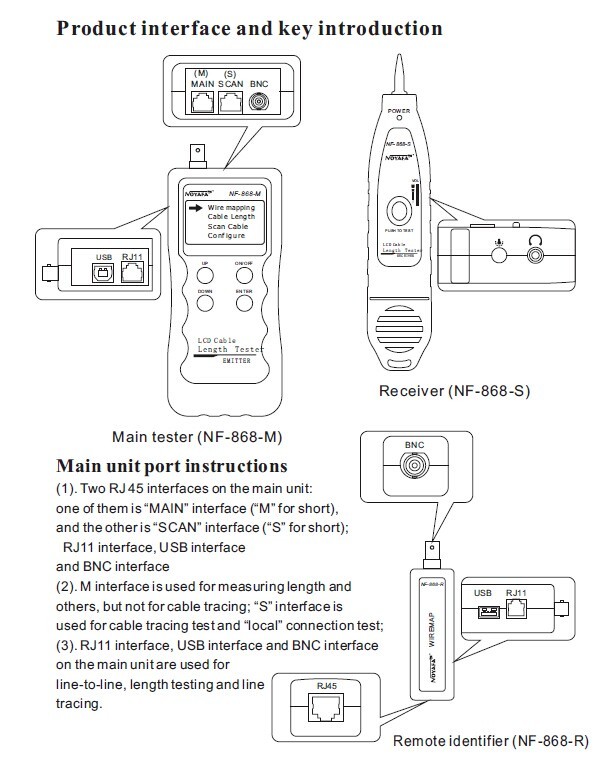

NF-868W Transmitter specifications
IndictorLCD 53x25 mm, with back light
Tone frequency1000 Hz
Max. working currentLess than 70mA
Tone mode2 Tone adjustable
Compatible connectorsRJ11,RJ45,USB,BNC
Max. signal voltage15Vp-p
Voltage protectionAC 60V/DC 42V
Battery TypeDC9.0V(NEDA 1604/6F22 DC9V x 1pcs)
Dimension(LxWxD)185x80x32mm
NF-868W Receiver specifications
Frequency1000 Hz
The Max. working currentLess than 70mA
Battery TypeDC9.0V(NEDA 1604/6F22 DC9V) x1pc
Dimension(LxWxD)218x46x29 mm
NF-868W Remote unit specifications
Compatible connectorsRJ11,RJ45,Coacial, USB,BNC
Dimension(LxWxD)107x30x24mm



Series Items' function comparision

DescriptionNF-8601NF-868NF-868WNF-300NF-8200
Find CablesRJ45+RJ11RJ45+RJ11RJ45+RJ11RJ45+RJ11RJ45+RJ11
BNCBNC+USB BNC+USB BNC+USB
Measure cable lengthRJ45+RJ11RJ45+RJ11RJ45+RJ11 BNC+USB
RJ45+BNCRJ45+RJ11
BNCBNC+USB
Check cable conditionRJ45+RJ11RJ45+RJ11RJ45+RJ11RJ45+BNC+RJ11RJ45+RJ11
BNCBNC+USB BNC+USB
Anti-current interferenceGoodGoodGoodGoodGood
Power supplyLithuim battery9V Battery9V Battery9V Battery1.5V AA
Display  screenColor Black-whiteBlack-whiteBlack-whiteBlack-white
Data exported to PCXXXX
PoE/PING functionXXXX
Voltage detectingXXXX
Remote unit1pc1pc8pc1pc1pc

Accessories Included:

telephone line adapter x 1 set

network cable adapter x 1 set
Cable clips x 1 set
user manual x 1set

earphone x 1 set
battery x 2 sets

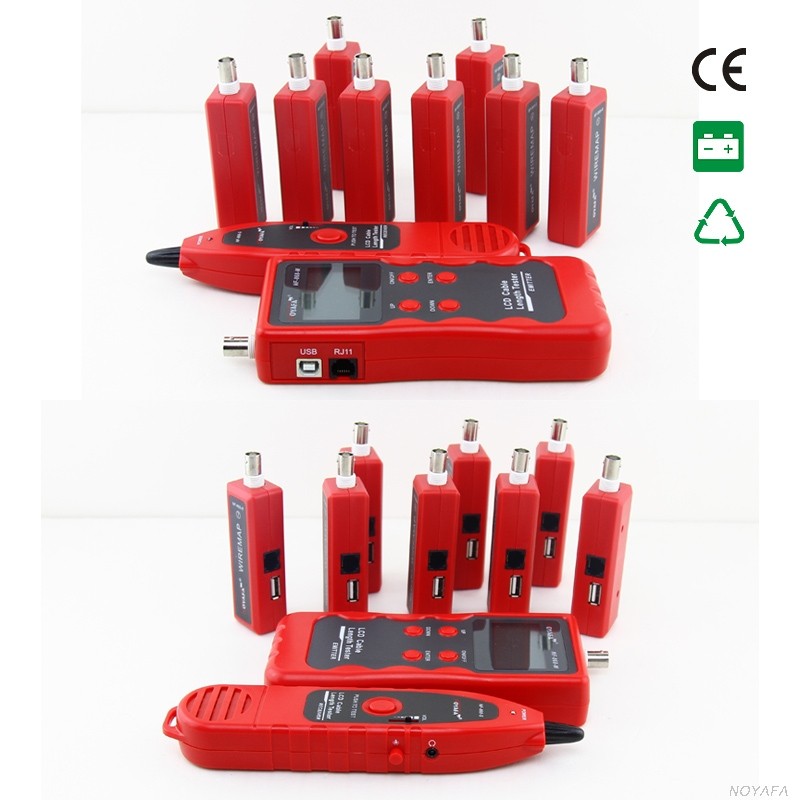

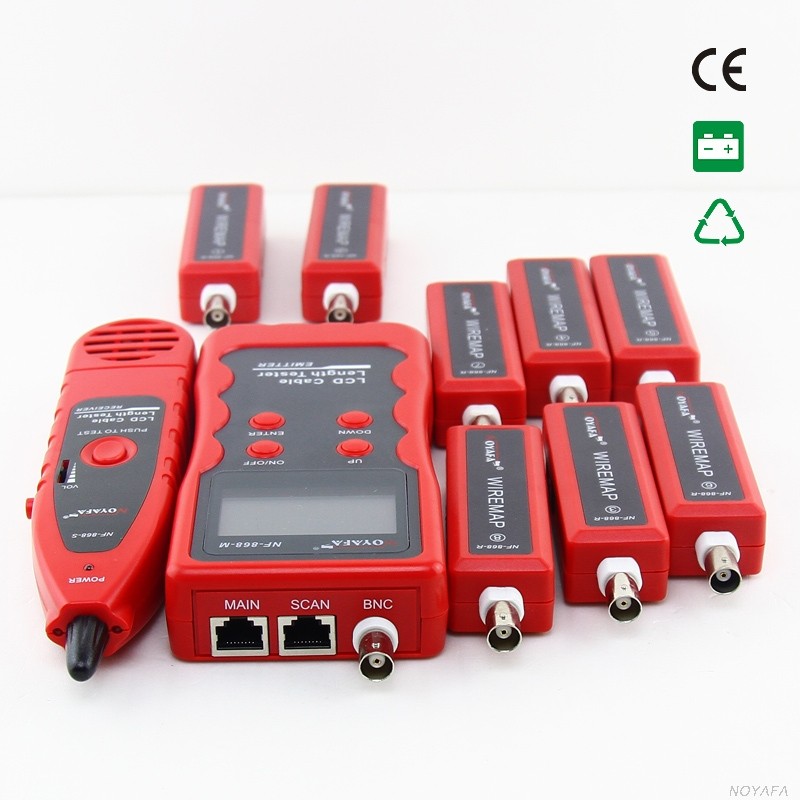

Detail images
868-2.jpg3.jpg2.jpg6.jpg Company information

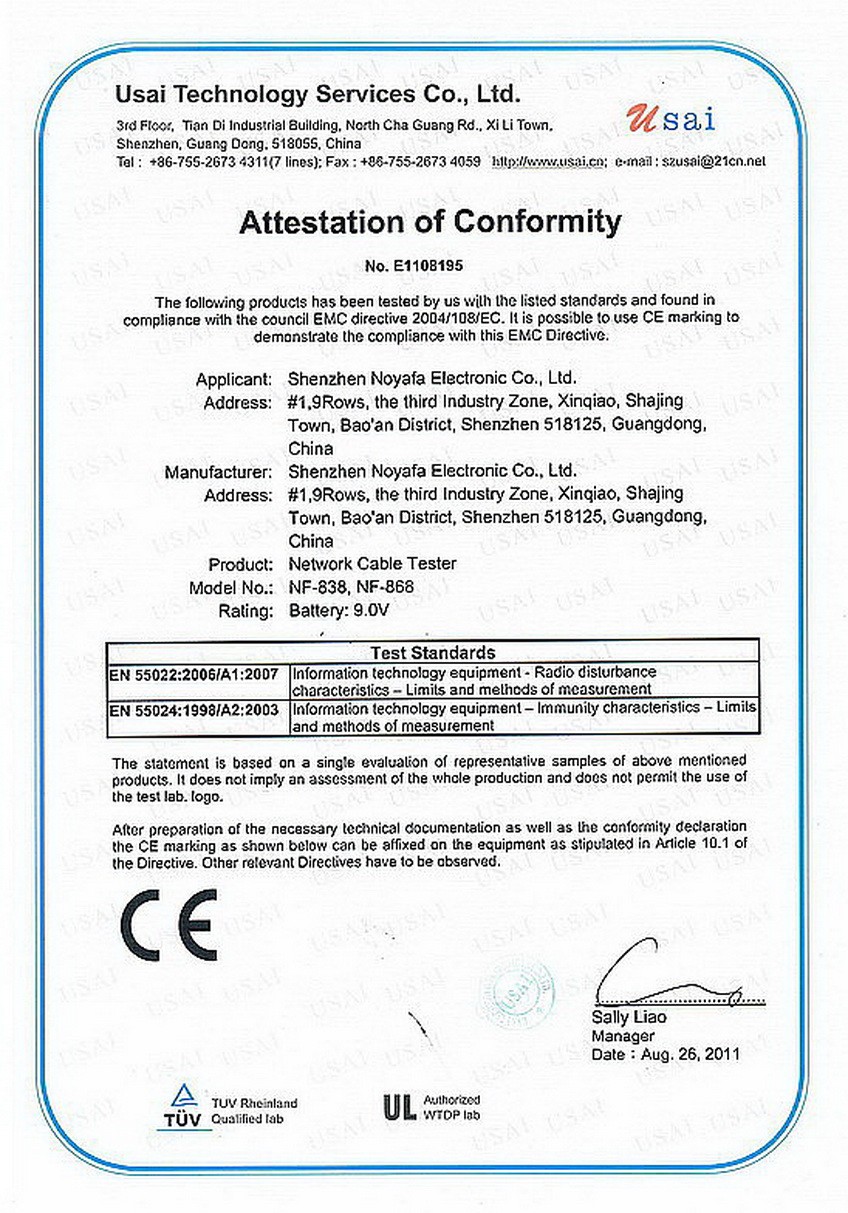

 CE NF-838,868.jpg
