NOYAFA brand ! Rj45 Network Lan Length Telephone Cable Location Tester Meter Measure

FOB Reference Price:Get Latest Price
US $30-35 / Piece | 100 Piece/Pieces (Min. Order)
Supply Ability:
5000 Piece/Pieces per Day
Port:
Shekou / Yantian
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
NOYAFA
Model Number:
NF8108-M
Power:
Electronic
Usage:
network tester
Color:
Gray
Warranty:
1 Year
Power supply:
1.5V Battery
Max cable length:
305m
Product name:
Cable length tester
Certificate:
CE
Model:
NF8108-M
Port:
RJ45
Function:
Cable length
Dimension(W*D*H):
184x84x46mm
Packaging & Delivery
Packaging Details
Packaging Details: Cloth bag with Box & Carton for shipping ( 30pcs / carton)
Delivery Detail: Base on the quantity ordered
Delivery Time
Depends on the quantity ordered (1-7 work days)

Rj45 Network Lan Length Telephone Cable Location Tester Meter Measure NF8108-M



Main function:

1. Measure network cable length and determine the distance of  breakage point.

2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
3. With 8 remote identifiers , more easy to work.
4. Portable unit with long battery life (wait-case 50 hours).
5. Automatically time-delay shut off.

6. Self-checking and automatically compensate any change in battery capacity or ambient temperature.



Accessories Included:


* Carton size:47.3 x 28.5 x 31 cm

* Quantity : 10pcs/ctn

* Weight: 10kg



Technical index:



NF8108-M Transmitter specifications
 Indictor LCD 53x25 mm
 Tone frequency 225 Hz
 Max. distance of cable map 300m
 Max. working current Less than 70mA
 Compatible connectors RJ45
 Faults LCD display LCD display
 Low battery display LCD ( 6.5V)
 Voltage protection AC 60V/DC 42V
 Battery Type DC 4x1.5v
 Dimension(LxWxD) 184x84x46mm
 NF8108-M Remote unit specifications
 Compatible connectors RJ45
 Remote units 8
 Dimension(LxWxD) 78x33x22mm




 Function Comparison:



FunctionNF8108-MSC8108NF-8208
 Find Cables××RJ45 + Elec-wire
 Address CablesRJ45RJ45RJ45
 Test LengthRJ45RJ45RJ45
 Test cross
 Test short
 Test crosstalk×××
 Lighting
 Earphone
 Anti-jamming×××
 Voltage Withstand×××
 Tone××1 type

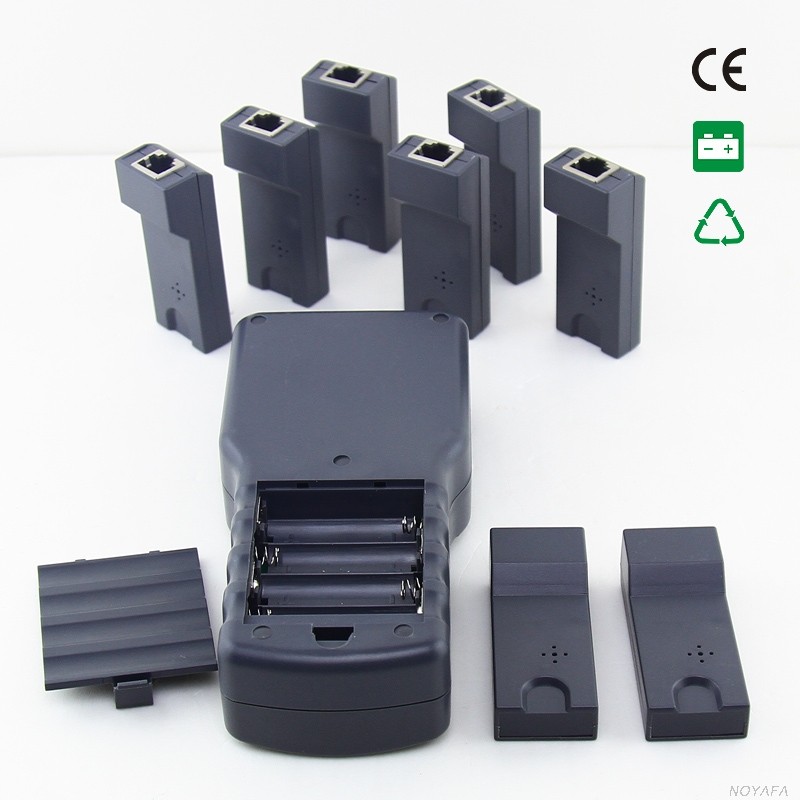

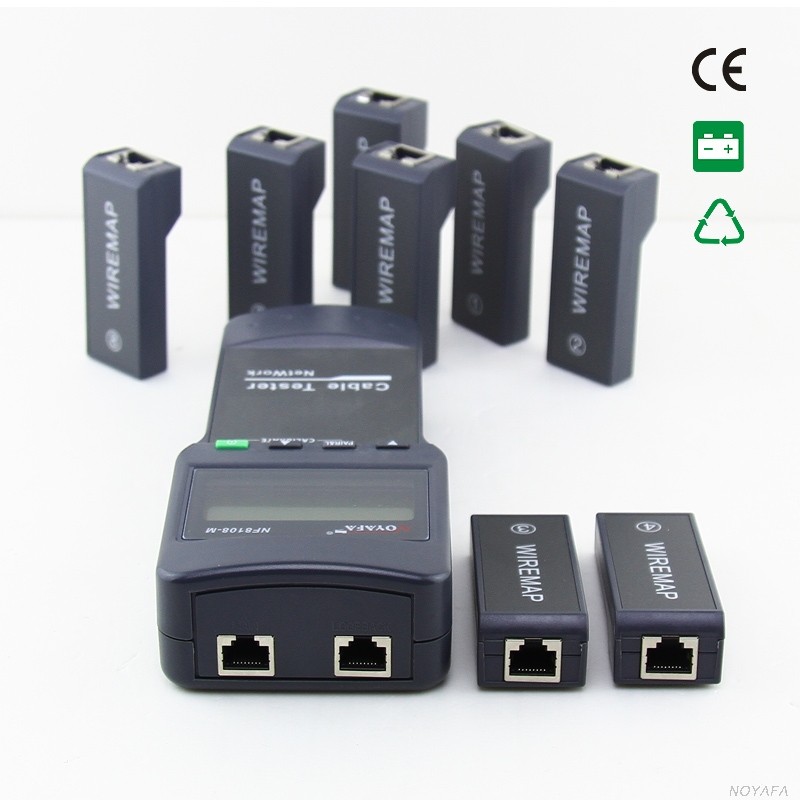

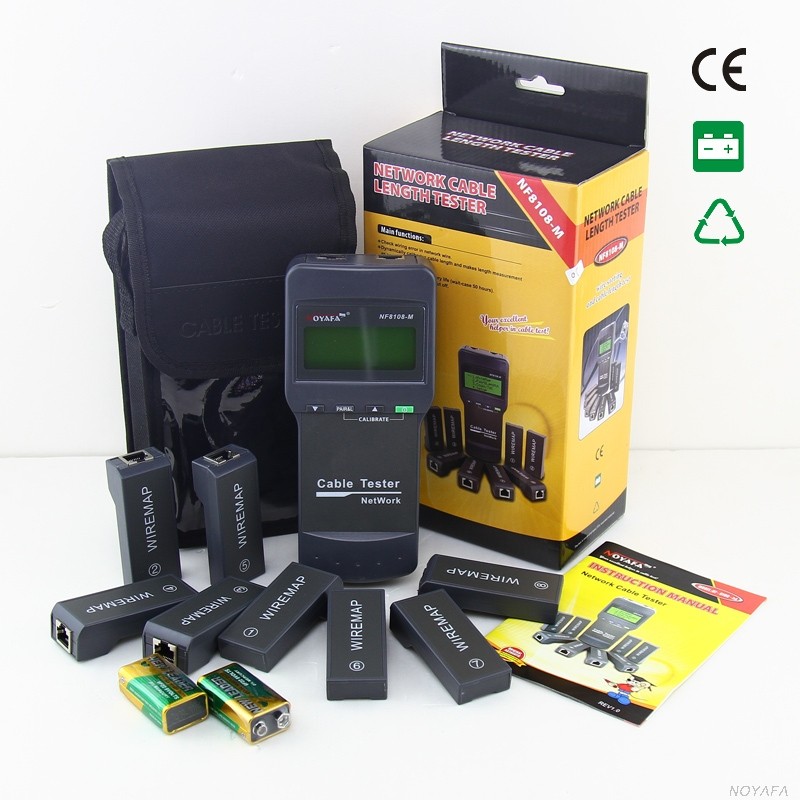

 Product pictures:

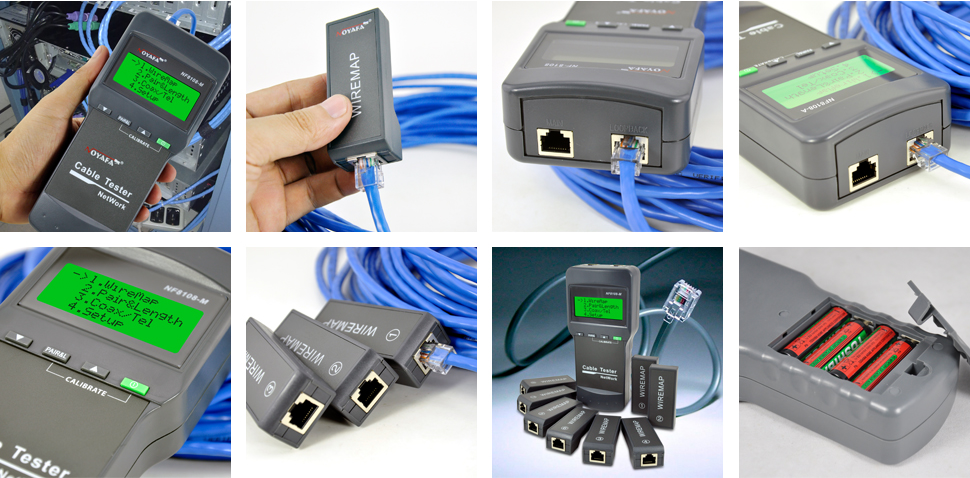

Application pictures:
