Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Noyafa
  • Model Number: NF-300
  • Power: Electronic
  • Usage: track wire
  • Product name: Wire Fault locator
  • Color: black
  • Is customized: yes
  • Port: RJ45, RJ11, BNC, USB
  • Wiremap type: RJ45, BNC
  • Tracking type: RJ45, RJ11, BNC, USB and metal cable
  • Other function: Led Flash and Loud Speaker
  • Power supply: 9V Alkaline battery
  • Warranty: 1 Year

Packaging & Delivery

Packaging Details Carton size:48.8x43.5x44.5 cm
Quantity : 30pcs/ctn
Weight: 22.2kg
Delivery Time 3 to 5days after received payment
Product Description

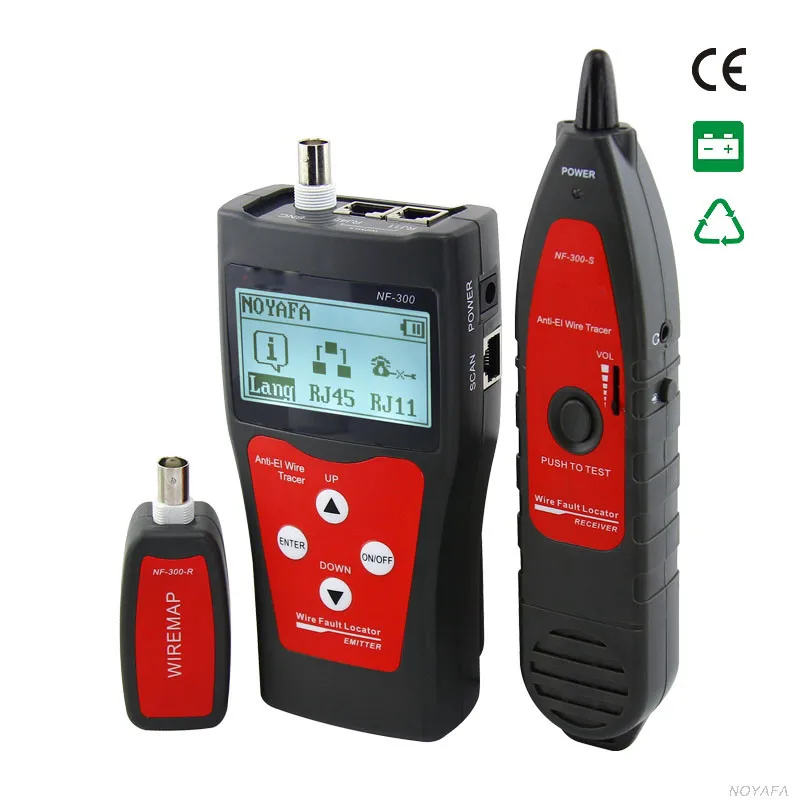

     Handheld Network test instrument cable wire fault locator

Features:

1. Trace and locate  RJ45 (STP / 4-core) , RJ11,USB,BNC cables
2. Anti-jamming, capable of working on the exchanger and PC startup

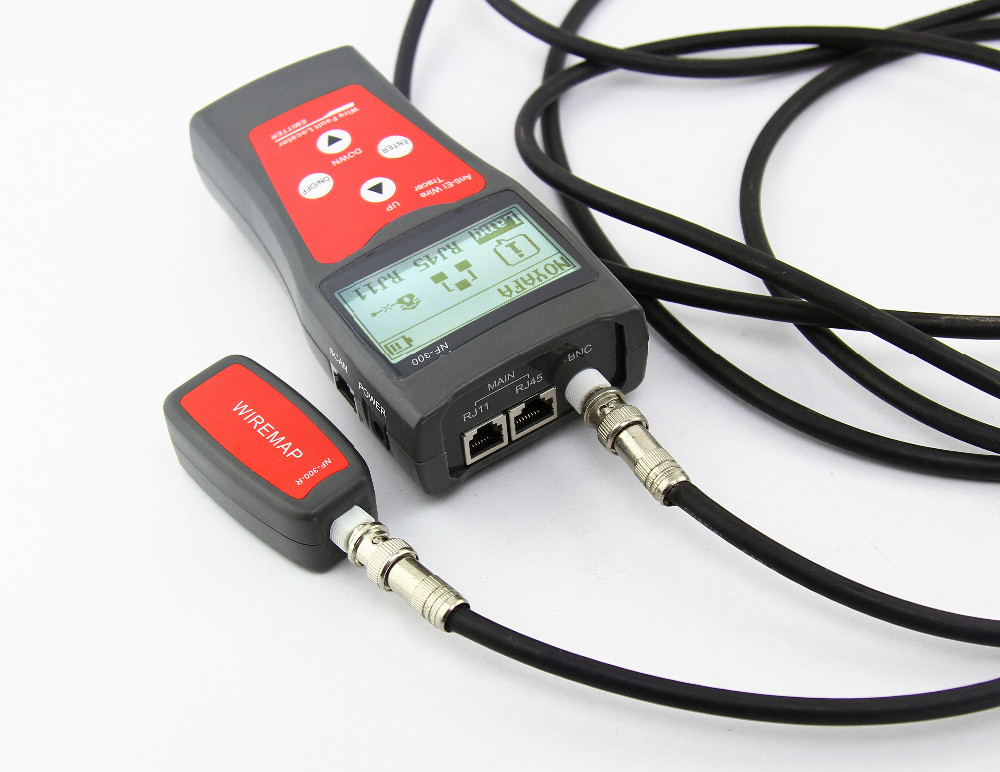

3. Measure cable length for RJ45,BNC cable.
4. Check open, short, cross, crosstalk for RJ11,RJ45, BNC Cable.
5. Locate short and breakage point accurately.
6. Earphone permits use in noisy environments
Benefits:
Enables cables to be located even when totally concealed
Memory and storage function
LCD Screen shows test result clearly
Technical indexes:



NF-300 Transmitter specifications
LCD screen53x25mm
Tone frequency225Hz
The Max. distance of tracing cableelectrified wire:3000m
Non-electrified wire: 2000m
The Max. distance of cablemapping2500m
The Max. distance of cable length testing1000m
Trace cable coonected to switchanti-jamming
Tone mode2 Tones, adjustable
Compatible with connectorsRJ11,RJ45,BNC,USB
LED lights displayWiremap, tone, tracing
Cable map indicationLCD (#1- #8)
Shielded indicationLCD (#9)
Voltage protectionAC 60V/DC 42V
Low battery displayLCD (6.5V)
Battery typeDC9.0V(NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD)185 x 80 x 32mm
NF-300 Receiver specifications
Frequency225kHz
The Max. working currentLess than 70mA
Earphone jack1
LED illumination2 LEDs
Battery typeDC9.0V(NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD)218 x 46 x 29mm
NF-300 Remote unit specifications
Compatible with connectorsRJ11,RJ45,BNC,USB
Dimensions (LxWxD)107 x 30 x 24mm

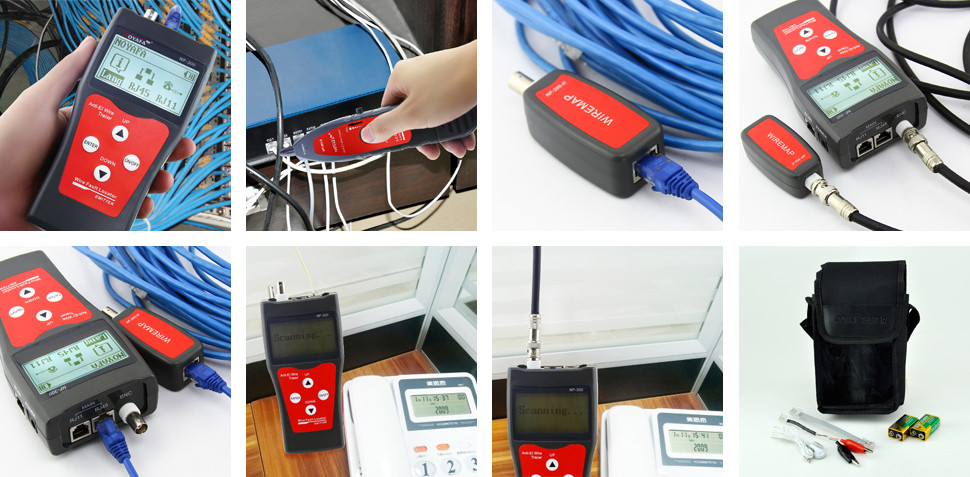

 Application:

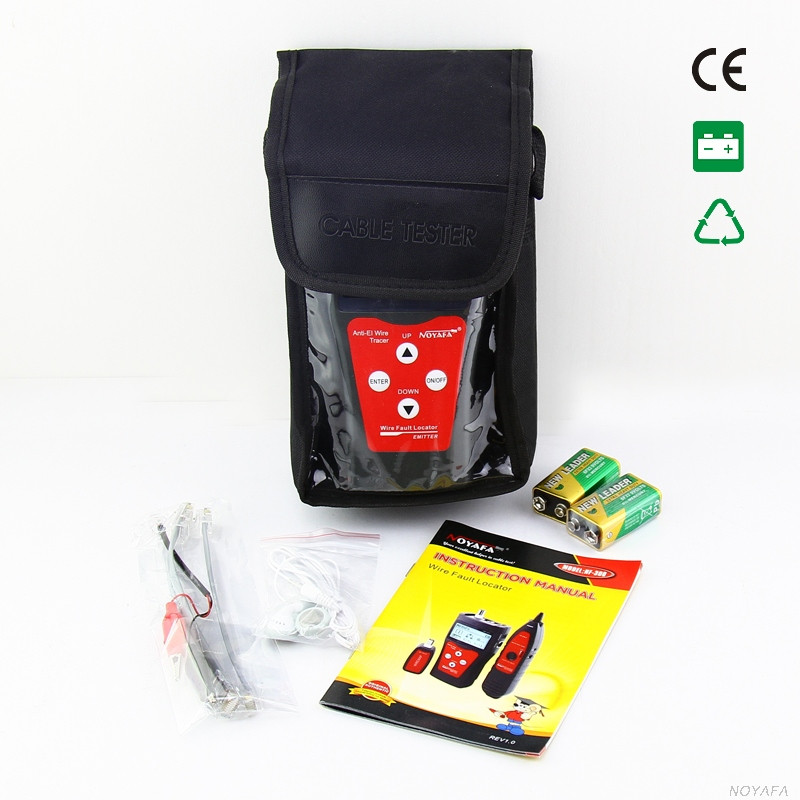

Packaging & Shipping

 Packing:

 Standard carton :

Carton size:48.8x43.5x44.5 cm

Quantity : 30pcs/ctn

Weight: 22.2kg

Shipping:

 All shipping way is available

Our Services

 After-Sale service Commitment



1.Product quanlity

All products are guaranteed on consistency

All products are stabilized after 24-hour aging testing.

All products are 100% inspected PASS before shipment.

All products are ensured compliance with national standards, GB4793.1-GB1094.6-96 Degrees of protection provided by enclosure, GB4793-1984 Safety

requirements for electronic measuring instruments, GB191 Packaging storage and transportation signs.



2. After-sales service Clause

2.1 Responsibility

We are only responsible for the samage or loss before opening-box inspections, otherwise, it is out of our responsibility in 6 months calid from the sate of purchasing to provide with further services for repair, maintenance or replacement.
2.2 Escape Provision
The following is out of our commitment and maintenance for free:
A. No any other valid proof.
B. Unauthorized repair to misuse or removal.
C. Normal wear and tear of accessories.
D. Abnormal connection to high-voltage equipments or long-time unuse.
E. Damage or defects caused by force majeure.
F. Improper maintenance and repair.
