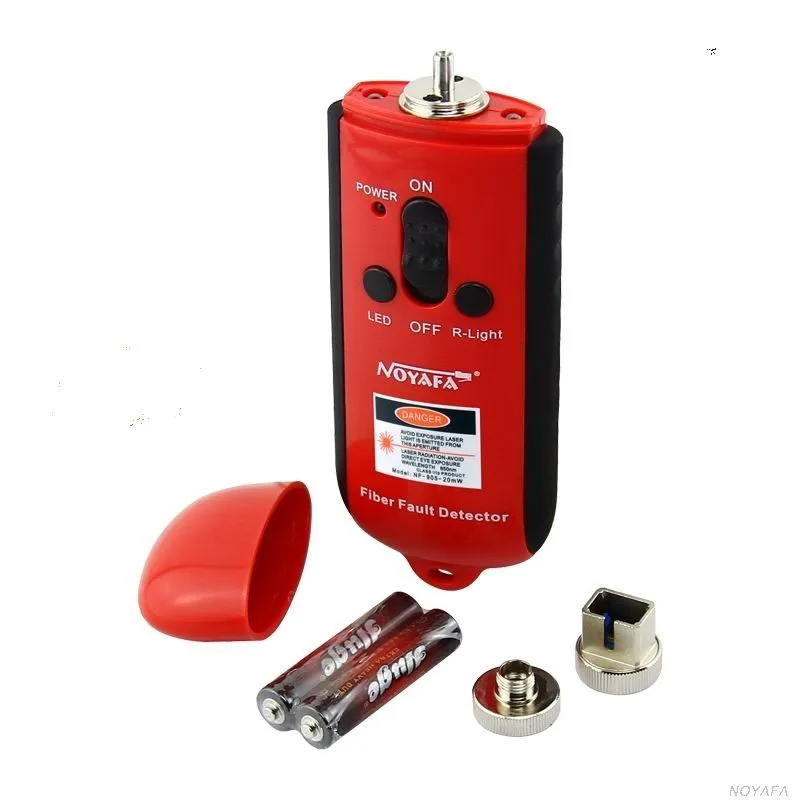

NOYAFA 650nm optical fiber visual fault locator VFL NF-905

FOB Reference Price:Get Latest Price
  • 20 - 499 Pieces
    US $20.00
  • >=500 Pieces
    US $18.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
NOYAFA
Model Number:
NF-905
Connector:
SC/FC/ST (interchangeable)
wavelength for VFL:
650nm
Application:
CATV / FTTH
Range:
5mw/10mw/20mw/30mw
Power supply:
1.5V battery
Certificate:
CE
Material:
ABS Plastic
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carry pouch + color box / OEM Packing
Port
Shenzhen
Lead Time :
3-5 days after payment
Product Description

650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.

Main function

1.Locating the fault of fiber breakage, winding and so on.

2. End-to-end fiber recognition.

3. The optimization of the machine connection point.

4. Continuous or pulse working modes interchangeable.

5. Led light helps working in dark.

6. Potect the interfaces with a special lid.

7. Push-pull dust cover and rubber bar for comfortable holding.

SPECIFICATIONS FOR VISUAL FAULT LOCATOR NF-905
Visual fault locator
Emmiting Energy
5mw/ 10mw/ 20mw/ 30mw selectable
Standard wavelenth
650±10nm
Operation Mode
Pulsed (2Hz) and CW
Connector
2.5mm or 1.25mm Universal connector
Power Supply
1.5V*3pcs
Auto-off time
15mins
Operating Temperature(°C)
-10~+60
Storage Temperature(°C)
-25~+70
Dimension(mm)
160x75x32mm
Weight (g)
210
Benefits

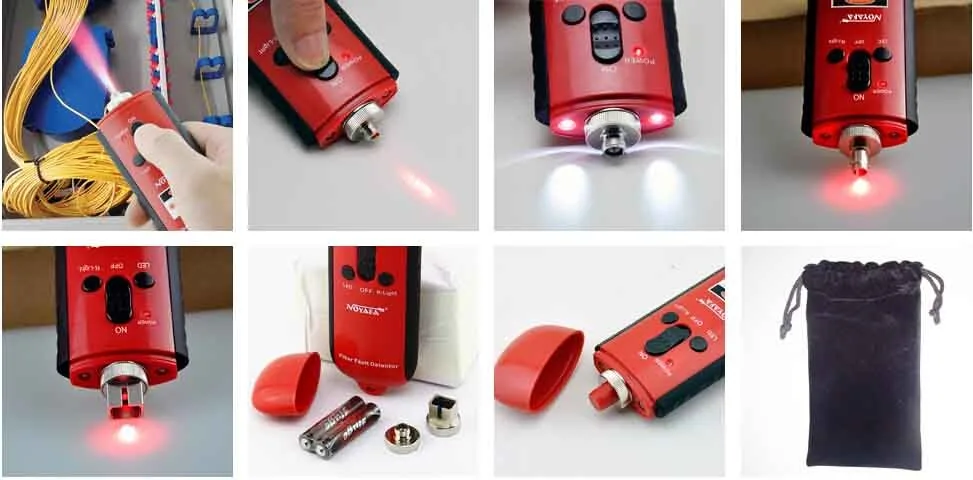

Detailed Images
Certifications
Related Products

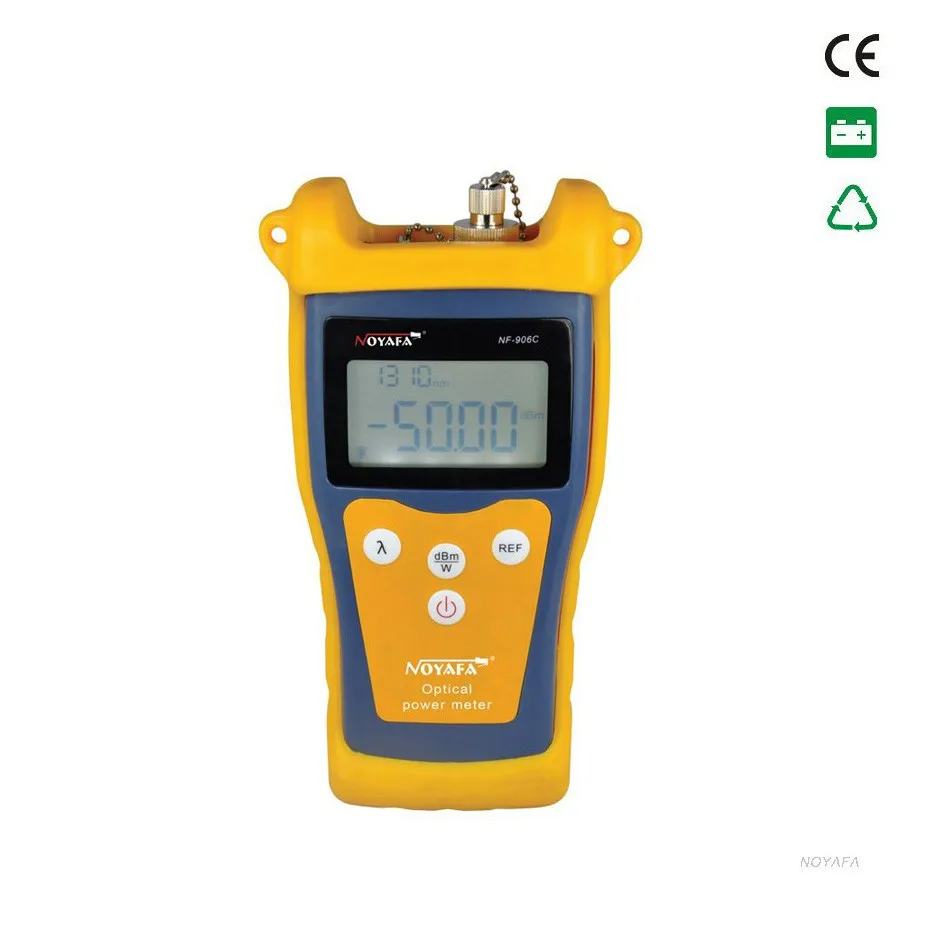

   Optical power meter NF-906

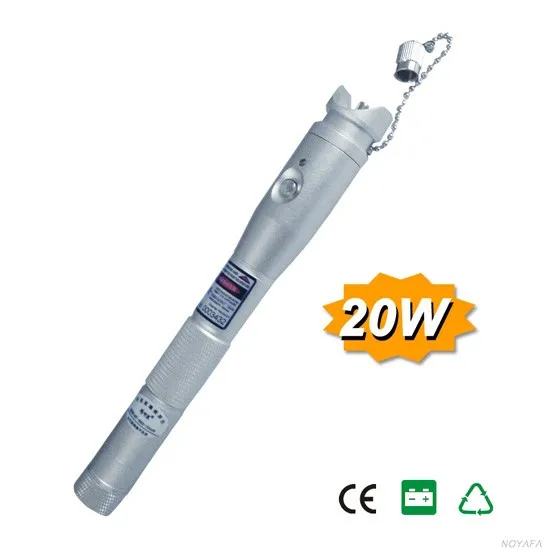

      Visual fault locator NF-903
