NF-622 New Multi Function Portable 1.2v 1.3v 1.4v HDMI Cable Tester

FOB Reference Price:Get Latest Price
  • 50 - 299 Pieces
    US $22.30
  • >=300 Pieces
    US $18.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland), Shenzhen.China
Brand Name:
NOYAFA
Model Number:
NF-622
Power:
Electronic, 9V Alkaline battery
Usage:
cable testing instrument
Is_customized:
Yes
Port:
HDMI- A / C
Tracking Type:
HDMI cable
Testing Type:
HDMI cable
Warranty:
1 Year
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Port
shenzhen
Product Description

Features:

1. Fast and accurate verification with type A - A, A - C,C-A and C - C connectors.
2. Check disorder, short, open and cross status of HDMI cables.

3. Mapping continuity and proper configuration.
4. 19 pins and grounded connection and 4 status leds.
5. Capable of checking wiremap only with master unit.
6. Adjustable test modes:Fast/slow scan/manual test for step by step.
7. Design with loopback function.



Bebefits


1.Verify HDMI cable perfect,mapping continuity and proper configuration.

2.19 pin-to-pin wire map and Grounded connection.

3.Adjustable test modes:Fast/Slow scan/manual test for step by step. 4.Manually verify cable by one led after another.

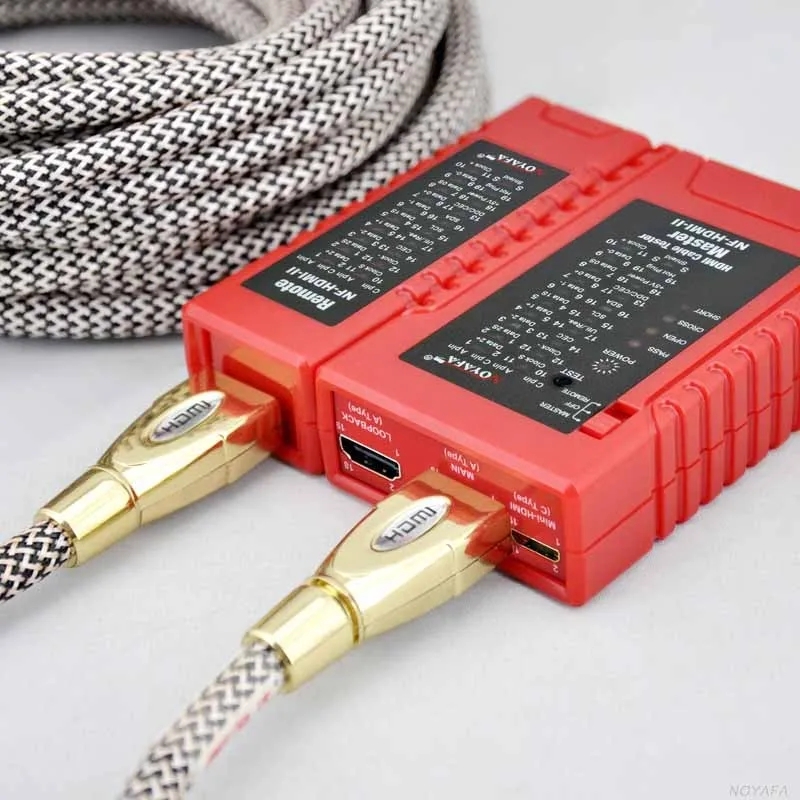

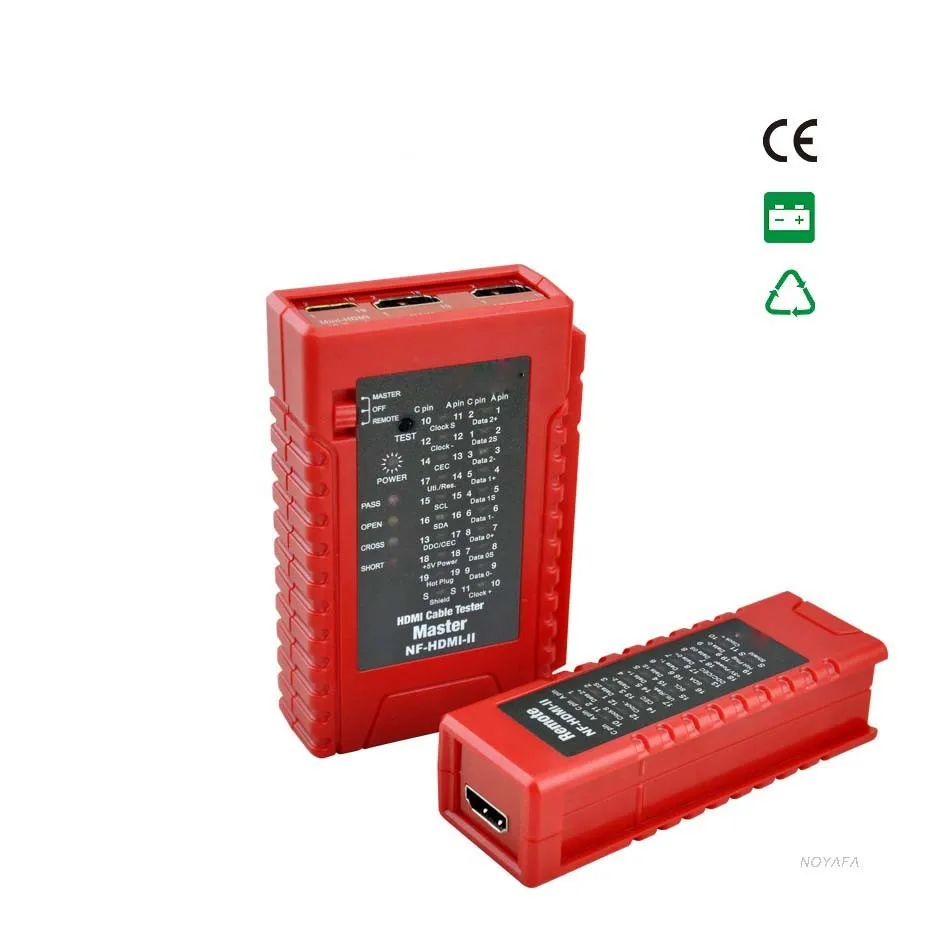

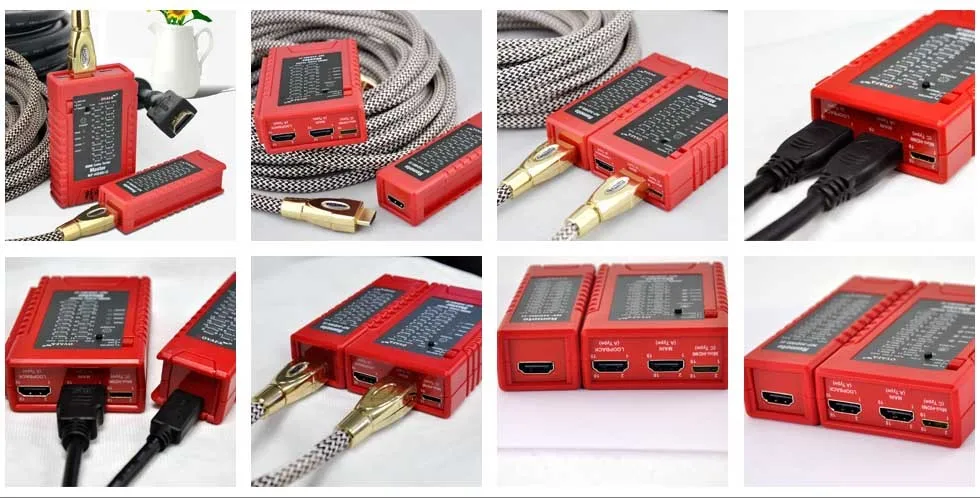

Detailed Images
Specification
Technical indexes:

Cables versions support
 HDMI cables with type A & C connectors conforming to 1.0,1.1,1.2,1.
 2a,1.3,1.3a,1.3b,1.4,1.4a,Category 1 and category 2 HDMI cables
 Support test
 19 pin to pin wiremap and shielding detection
 Test interface of master unit
 HDMI ( type A) x 2, Mini HDMI (type A ) x1
 Test mode
 Fast / slow scan / step by step
 Test distance
 Under 50 meters

 Status Display
 19 leds and shield led on both master and remote unit
 4 leds (pass, open, short, cross)
 Beeper indication
 Yes
 Low battery indication
 6.0V
 Power source
 DC 9V (NEAD 1604/ 6F22) x1 (not included)

 Environment
 Operating:0℃ to 40 ℃< 80% RH
 Storage:-10℃ to 50℃ <70%RH

 Dimensions
 Master unit:103x66x27mm
 Remote unit:103x35x27mm
 Function Comparison:
Name
 HDMI cable tester
 Model
 NF-622
 Wire map
 19 pin+Shield
 Cable type
 A-A, A-C, C-A,C-C
 Test type
 Master / Master+Remote
 Status display
 Yes (pass, open, short,cross)
 Test distance
 < 50 meters
 Low battery indication
 Yes
 Test mode
 Fast/slow/step by step
 Battery
 9 V
