Quick Details

  • Place of Origin: Guangdong, China (Mainland), Shenzhen.China
  • Brand Name: noyafa
  • Model Number: NF-902
  • Power: Electronic
  • Usage: Fiber Optic Equipment
  • Main Function: Work with optical power meter to test the fiber loss.
  • Connector: FC/SC/ST interchangeable

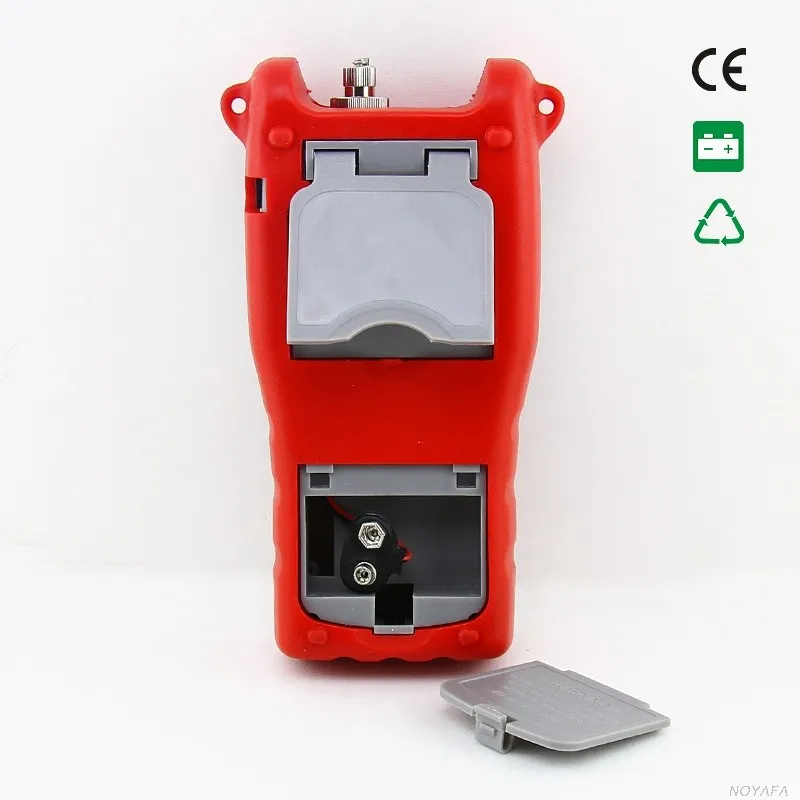

  • Power supply: 9V Alkaline battery
  • Warranty: 1 Year

Packaging & Delivery

Packaging Details Standard carton:
* Carton size: 51*33*51cm
* Quantity : 20pcs/ ctn
* Weight: 16kg
Product Details

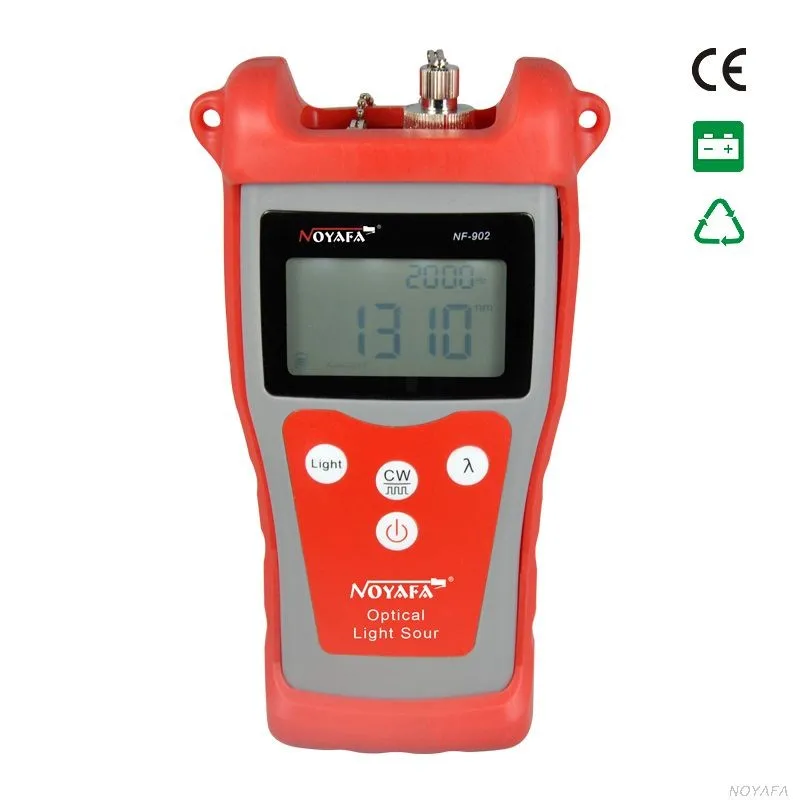

                                  FIBER OPTICAL LIGHT SOURCE


Main functions:

1. work with NF-906 optical power meter.

2. A fast,stable and cost effective test solution.

3. Provide 2 wavelengths output:1310,1550nm.

4. CW/ 270Hz,1KHz,2KHz modulation output.

5. FC/SC/ST general-purpose interface.

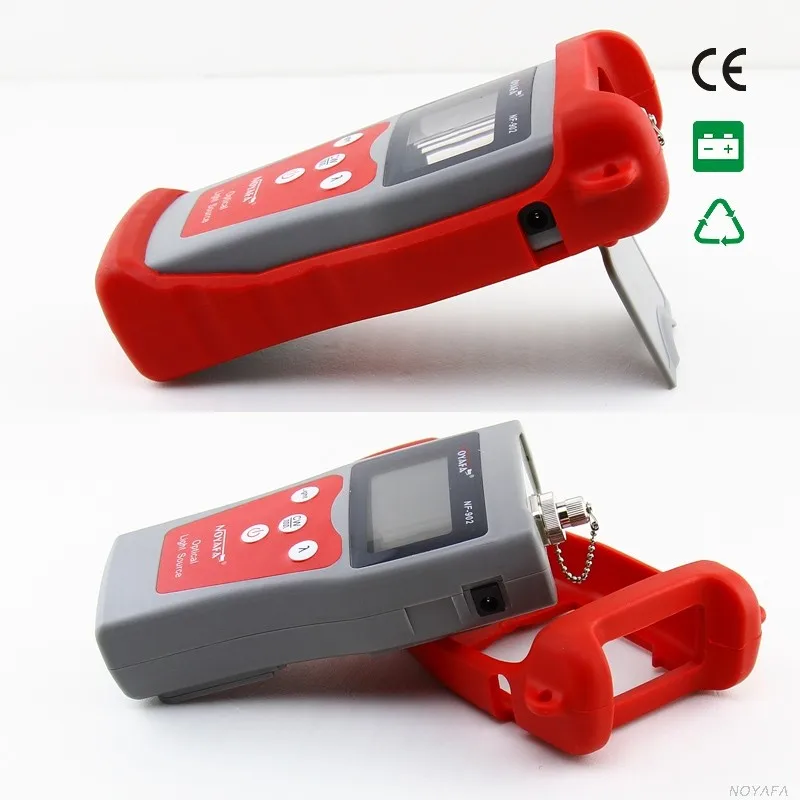

Detailed Images
Benefits

1. Verifiesfiber conductors.

2. ProvideModel  NF-902


Specification
Model
 NF-902
 Power detecting range(dBm)
 -70 ~ +10
 Wavelenth (nm)
 1310, 1550
 Emitter type
 FP-LD
 Output power
 -7dBm
 Modulation frequencies
 CW/270Hz,1Hz,2Hz
 Fiber Type
 SM/MM
 Optical connector
 FC/SC/FC
 Automatic shutdown time
 15mins
 Battery serving time
 60h
 Power supply
 9V
Our Company

SHENZHEN NOYAFA ELECTRONIC CO.,LIMITED is a leading brand and manufacture based in Shenzhen,China. sipplying LCD cable tester,Cable length tester, Optic multimeters, CCTV monitor tester,HD cable tester , Toolkits and Laser range finder field since in 2006.

NOYAFA this brand for differend product lines in network cabling, and has been developing it's prodcut line and expanding it's business with the policy of innovation , quanlity and service with customers all over the world.

After years of development, the company has created a wealth of experience in sales and after-sales service team. Manufacturers and users in the formation of a very high reputation. At present, Our products are exporting to all over the world,especially to Europe,Asian,America. No matter where or when, customers' satisfactory is our eternal pursuit and goal.

Company strength
We have more than 3000 square meters factory with 3 layers and 5 prodcution lines. We also adopted the latest machinery and equipment as well as the most advance technologies to supply the raw materails by our technical operators. Some of our items received appearance of the patent in our home market and implement the agent system in every province to control the Network cabling market.
