2016 New ! Anti-jamming Ethernet Cable Tester, Lan Tester Tool NF-300

FOB Reference Price:Get Latest Price
  • 100 - 499
    US $45.00
  • >=500
    US $42.00
Supply Ability:
10000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
NOYAFA
Model Number:
NF-300
Power:
Electronic
Usage:
Network cable tester
Certificate:
CE
Warranty:
1 Year
Application:
STP/UTP twin twisted cable, coax
Scope:
2000m
Package:
Carry pouch+ Giftbox /OEM Packing
Packaging & Delivery
Packaging Details
GW: 21.0KG 30pcs/ctn

Main Features (Anti-jamming cable tracker NF-388)
1. Trace and locate  RJ45 (STP / 4-core) , RJ11,USB,BNC cables
2. Anti-jamming, capable of working on the exchanger and PC startup.
3. Measure cable length for RJ45, BNC Cable.
4. Check open, short, cross, crosstalk for RJ11, RJ45, BNC cable.
5. Locate short and breakage point accurately.
6. Memory and storage function.
7. LCD Screen shows test result clearly.

Specification

NF-300 Transmitter specifications
LCD screen53x25mm
Tone frequency130KHz
The Max. distance of tracing cable electrified wire:3000m
Non-electrified wire: 2000m
The Max. distance of cablemapping2500m
The Max. distance of cable length testing1000m
Trace cable coonected to switchanti-jamming
Tone mode2 Tones, adjustable
Compatible with connectorsRJ11,RJ45,BNC,USB
Cable map indicationLCD (#1- #8)
Shielded indicationLCD (#9)
Voltage protectionAC 60V/DC 42V
Low battery displayLCD (6.5V)
Battery typeDC9.0V(NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD)185 x 80 x 32mm
NF-300 Receiver specifications
Frequency130KHz
The Max. working currentLess than 70mA
Battery typeDC9.0V(NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD)218 x 46 x 29mm
NF-300 Remote unit specifications
Compatible with connectorsRJ11,RJ45,BNC,USB
Dimensions (LxWxD)107 x 30 x 24mm

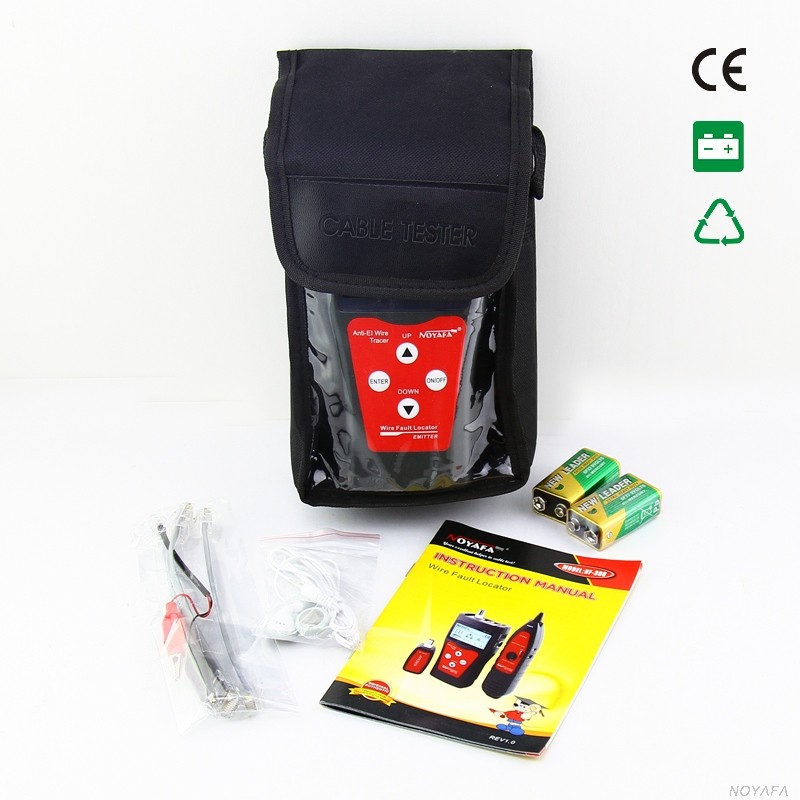

Accessories Included:
telephone line adapter x 1 set
network cable adapter x 1 set

Cable clips x 1 set
user manual x 1set
earphone x 1 set
battery x 2 sets

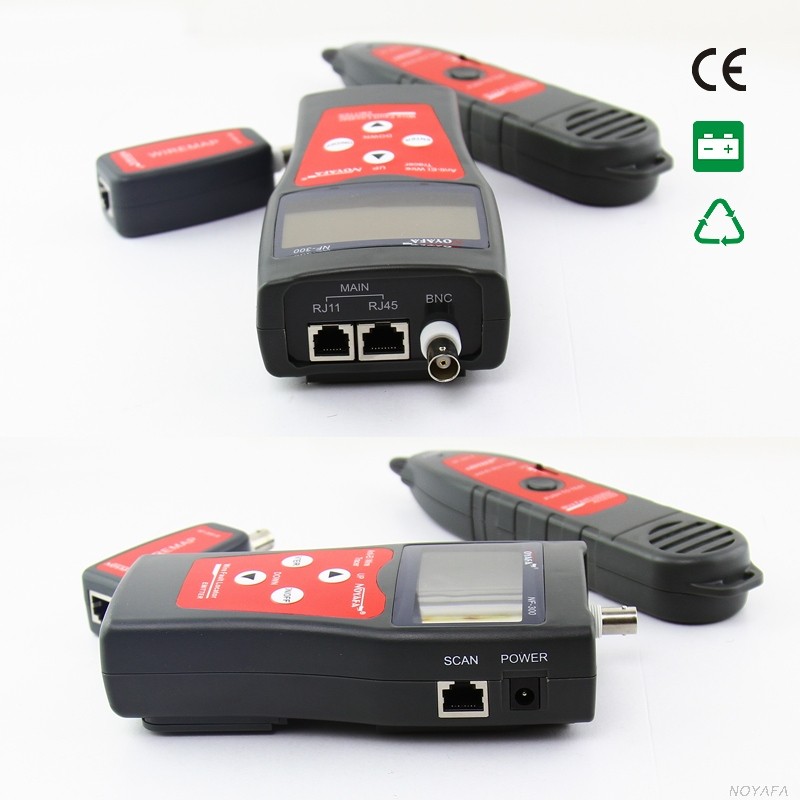

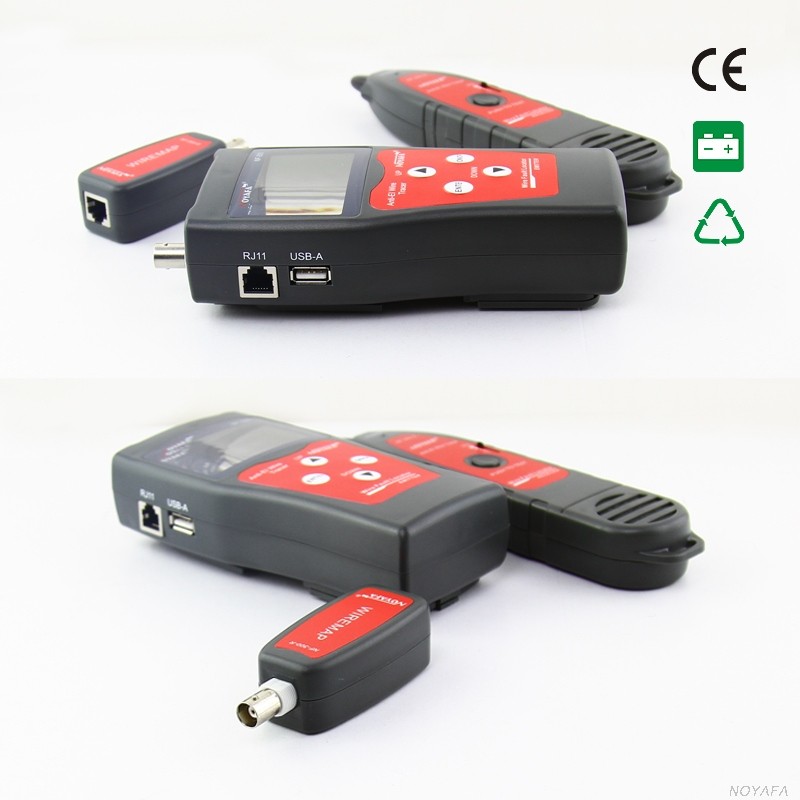

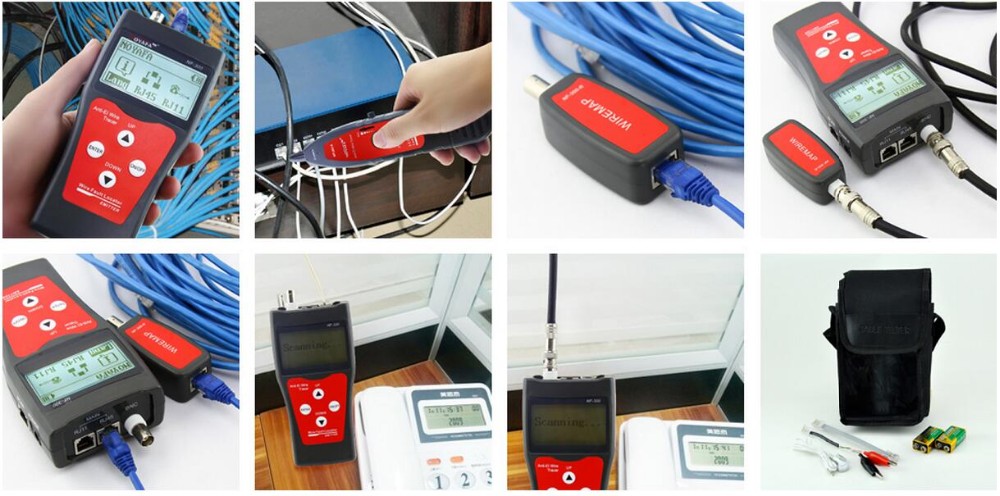

Detail images
