NOYAFA Brand ! 4.3 " HD CCTV camera Tester network cable ahd tester

FOB Reference Price:Get Latest Price
US $82-88 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
NOYAFA
Model Number:
NF-707
Type:
Analog Camera
Style:
Dome Camera
Sensor:
CCD
Technology:
CVBS/ Analog signal
Special Features:
CVBS/ Analog signal
Color:
Red
Power Supply:
Lithium Battery
Language:
Chinese & English
Warranty:
1 Year
Length Type:
RJ45, BNC Cable
Main function:
Analog & CVBS Signal, cable tester tracker
Tracking Type:
RJ45, BNC and Metal Cable
Wiremap Type:
RJ45, BNC Cable
Keyword:
CCTV tester
Model:
NF-707
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day Depends on the quantity orderd (1-7 work days)
Packaging & Delivery
Packaging Details
Packaging Details: Cloth bag with Box & Carton for shipping ( 30pcs / carton)
Delivery Detail: Base on the quantity ordered
Port
Shekou / Yantian
Lead Time :
Shipped in 3 days after payment

4.3 " HD CCTV camera Tester network cable ahd tester  NF-707



Main features  :

1. SD video formats NTSC/PAL Automatically adapt and display formats.

2. PTZ control . Pan/tilts the P/T unit, zooms in/out the lens,adjust the focus, aperture and sets and call the preset position.

3. Video signal analysis, by analyzing the sync level measure video signal amplitude attenuation.

4. Input Audio signal,test pickups and microphone audio signal.

5. The PAL/NTSC multi-system color bar video generator

6. 485 Control Interface .Support Baud Rates with 2400/ 4800/ 9600 .

7. Multi-Protocol . Support more than 20 kinds PTZ protocol, such as PELCD-D, PELCD-P,SAMSUNG,MINKING etc .

8. Date analyst. Captures and analyzes RS 485 controlling date to help the technician to find out the problem.

9. Optical power meter bulit-in to check the fiber loss.

10. Check open,short,cross reverse wiremap for RJ45 and BNC cable, results shows on the display.

11. Trace and locate RJ45 BNC and other metal cables.

12. Test cables when open circuit . Measure cable length for BNC.Max length 620m .



Benefits  :

1. Chinese and English can be selected.

2. 3.5 TFT-LCD,960(H) x 240(V) resolution

3. TFT-LCD Screen brightness, contrast, color saturation is adjustable

4. Anti-jamming ,free noise ,capable of working in the exchanger and PC startup .

5. Locate breakage point accurately.

6. Low battery alarm function: when main voltage <3.4v or Receiver voltage <6v.

7. Function of storage and memory .

8. Large-capacity high-performance lithium battery-powered, rechargeable.

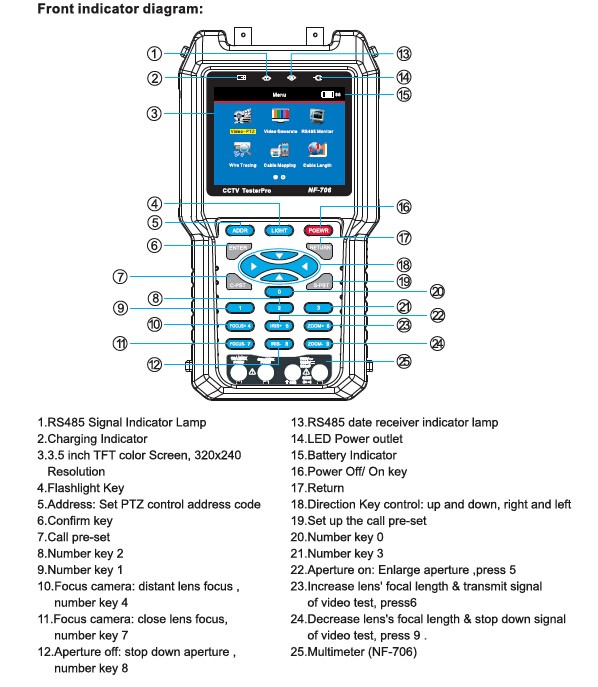

Pictures:













Application Picture:
