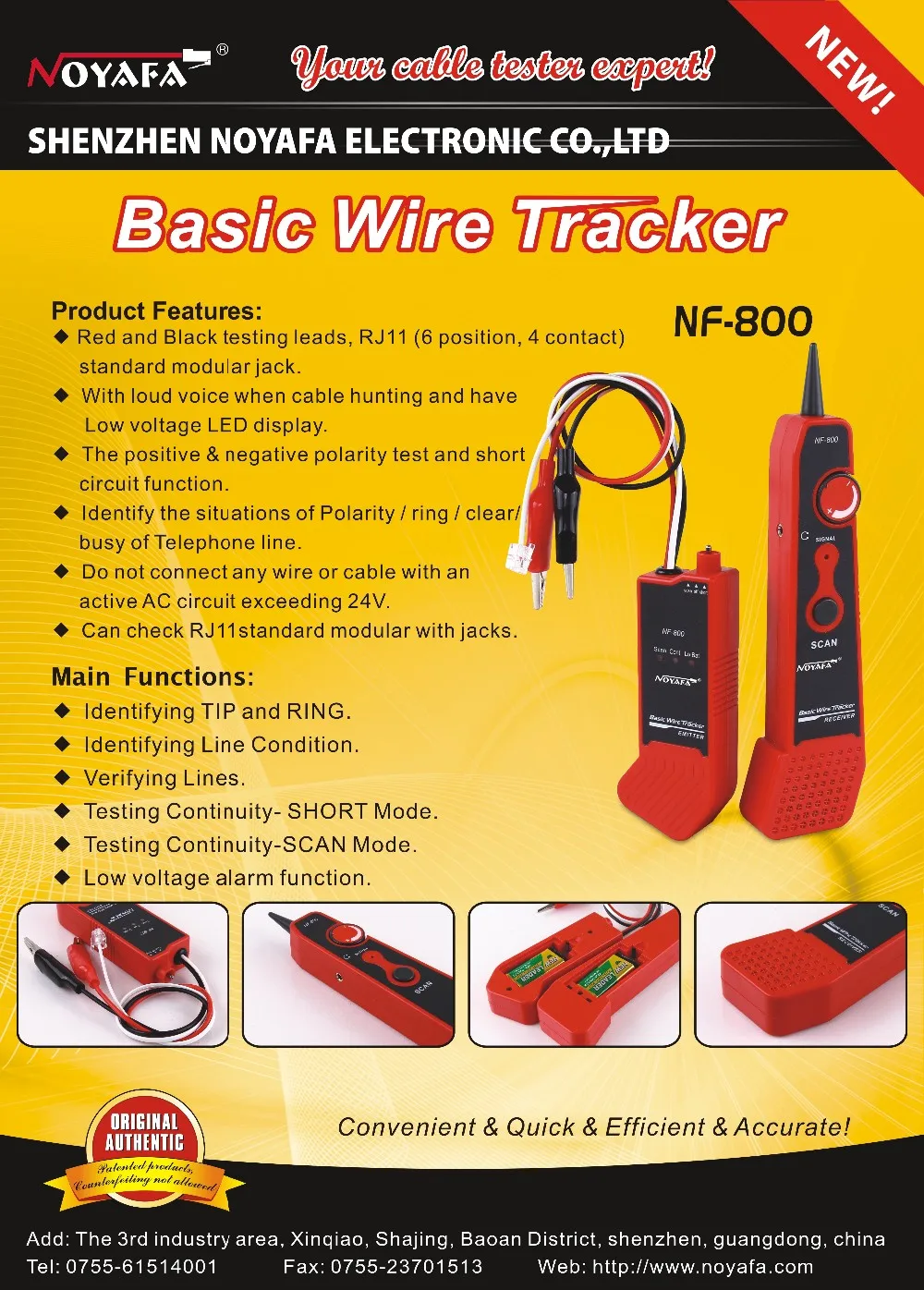

1. Red and Black testing leads RJ11 (6 position, 4 contact) standard modular jack.
2.3 LED displays (CONT, TONE, and Low Battery).
3.The COUNT LED will indicate the line condition as SOLIDGREEN=CLEAR, OFF ( NO LIGHT ) = BUSY, or FLICKERING GREEN = RINGING.
4.Do not connect the Tone Generator on the CONT position to any wire or cable with an active AC circuit exceeding 24V).
5.Single solid tone or dual alternating tone put ( set inside the test unit ).
1.Don’t place the device in a dusty, wet and nor high temperature (up to 40℃).
2.Make sure to use correct battery, otherwise it may damage the device.
3.Don’t use this device on a powered line, otherwise it may damage to the equipment, and endanger personal safety.
4.To avoid damage to your tester don’t use during and electrical storm.

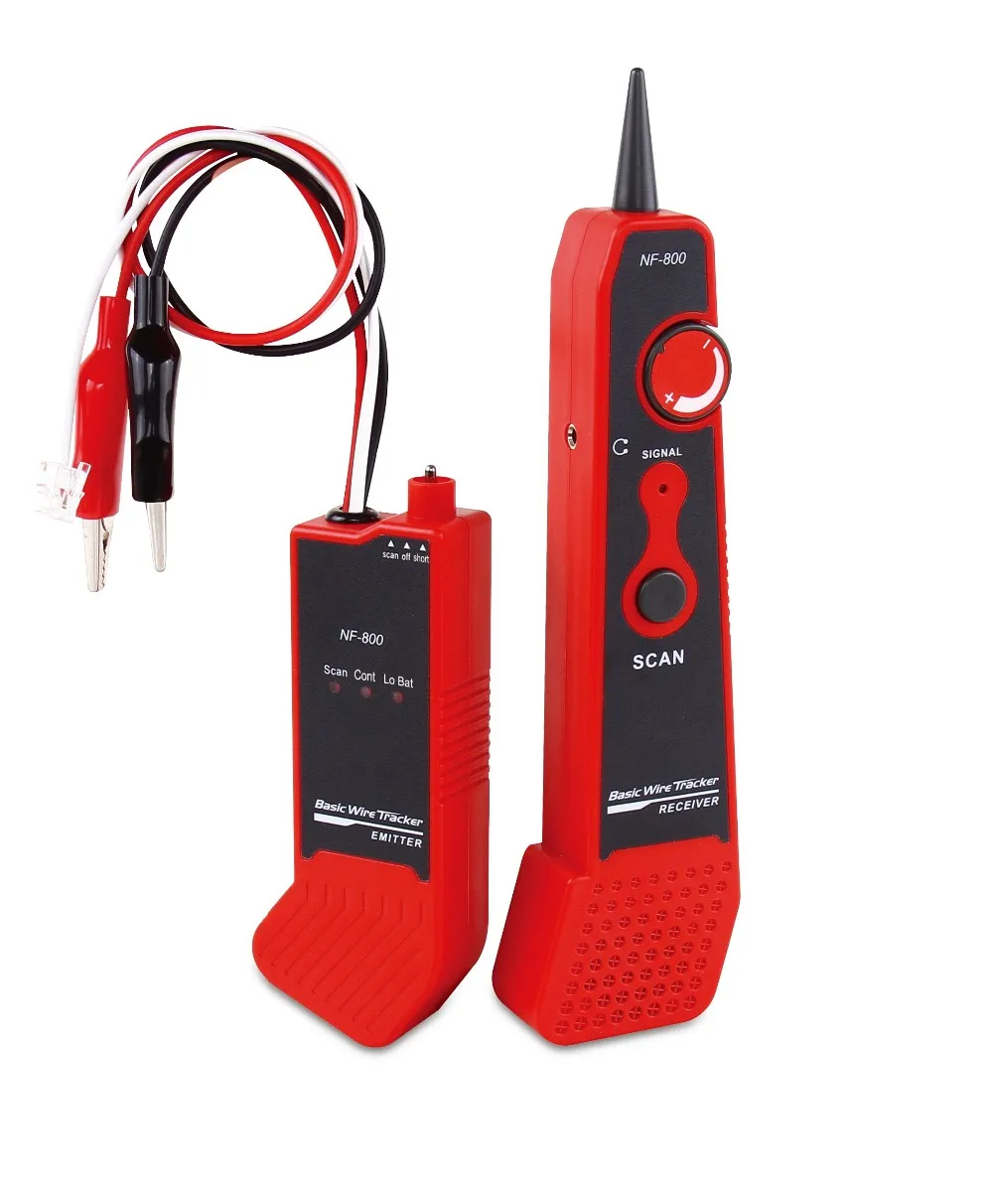

NF-800 Transmitter specifications
Max. distance of transmission
Max. working current
Volume Regulate Function
Audio volume level control
OFF, CONT, and TONE
RJ11, cable clip with RJ45 connector
Max. signal voltage
LED lights display
CONT, TONE, and Low Battery
AC 60V/DC 42V
DC9.0V（NEDA 1604/6F22) x 1pc
23.5 x 5 x 4.5cm
NF-800 Receiver specifications
The Max. working current
13x 4 x 2.6cm
Packing & Delivery
Tone Generator x 1pcs
Amplifier probe x 1pcs
9V battery x 2pcs
Earphone x 1pcs
Manual x 1pcs
Certificate of approval x 1pcs
Blister x 1pcs
Back card x 1pcs
