LCD Network Length tester wire locator NF-8208

FOB Reference Price:Get Latest Price
  • 10 - 99 Pieces
    US $33.00
  • 100 - 999 Pieces
    US $31.00
  • >=1000 Pieces
    US $29.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland), Shenzhen.China
Brand Name:
NOYAFA, Noyafa
Model Number:
NF-8208, NF-8208
Power:
Electronic, 9V Alkaline battery
Usage:
Network length tester
Main Function:
Test Track and Measure Length of Network Cable
Display:
LCD with Backlight
Tracking Type:
RJ45 ,RJ11
Testing type:
RJ45, RJ11
Warranty:
1 Year
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton size :48.8x43.5x44.5 cm
Quantity : 30pcs/ctn
Weight: 19.5kg
Port
Shenzhen
Lead Time :
Shipped in 1 days after payment

     2016 high quality LCD Network Length tester wire locator cable tester

Features:

1. Check wiring error in 5E, 6E, such as open circuit, short circuit,jumper wire, reverse connection.


2. Measure length of network cable, and locate the open point .

3. Self-checking function and automatically compensate any change in battery capacity or ambient temperature.

4. LCD light assists use in dark corners.


5. Enables cables to be located even when totally concealed.






.Technical indexes:

NF-8208 Transmitter specifications
IndictorLCD 53x25 mm, with back light
Tone frequency225 Hz
Max. distance of transmission 2 km
Max. distance of cable map300m
Max. working currentLess than 70mA
Tone mode2 Tone adjustable
Compatible connectorsRJ45
Max. signal voltage15Vp-p
Function and faults LCD displayLCD display ( wiremap, Tone, short, , No adapter, Low  battery )
Cable map indicationLCD (#1-#8)
Shielded indicationLCD ( #9)
Voltage protectionAC 60V/DC 42V
Battery TypeDC9.0V(NEDA 1604/6F22 DC9V x 1pcs)
Dimension(LxWxD)185x80x32mm
NF-8208 Receiver specifications
Frequency225kHz
The Max. working currentLess than 70mA
Earjack1
LED illumination2
Battery TypeDC9.0V(NEDA 1604/6F22 DC9V) x1pc
Dimension(LxWxD)218x46x29 mm
NF-8208 Remote unit specifications
Compatible connectorsRJ45
Dimension(LxWxD)107x30x24mm

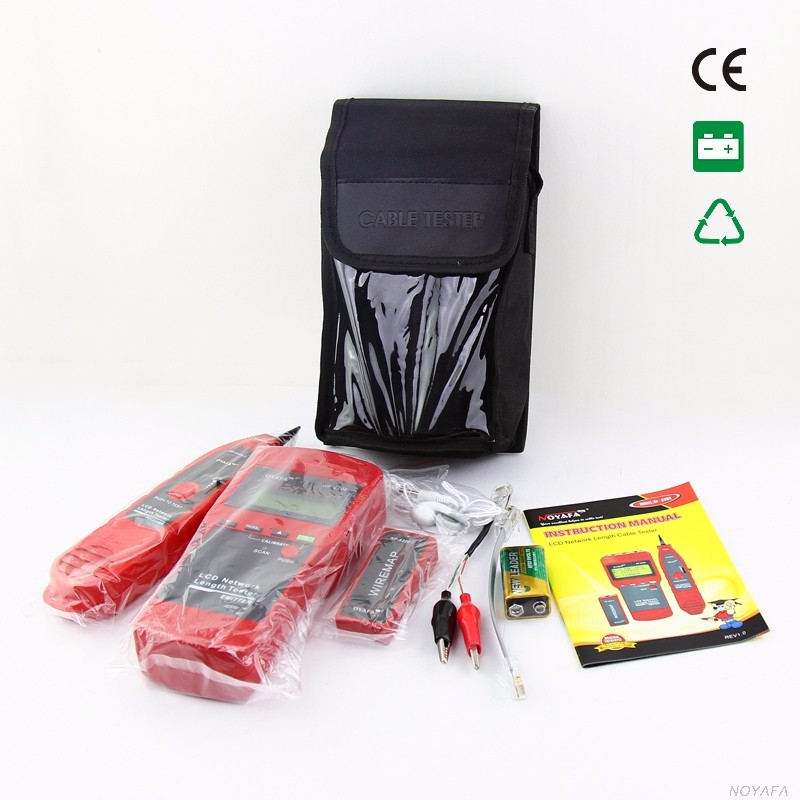

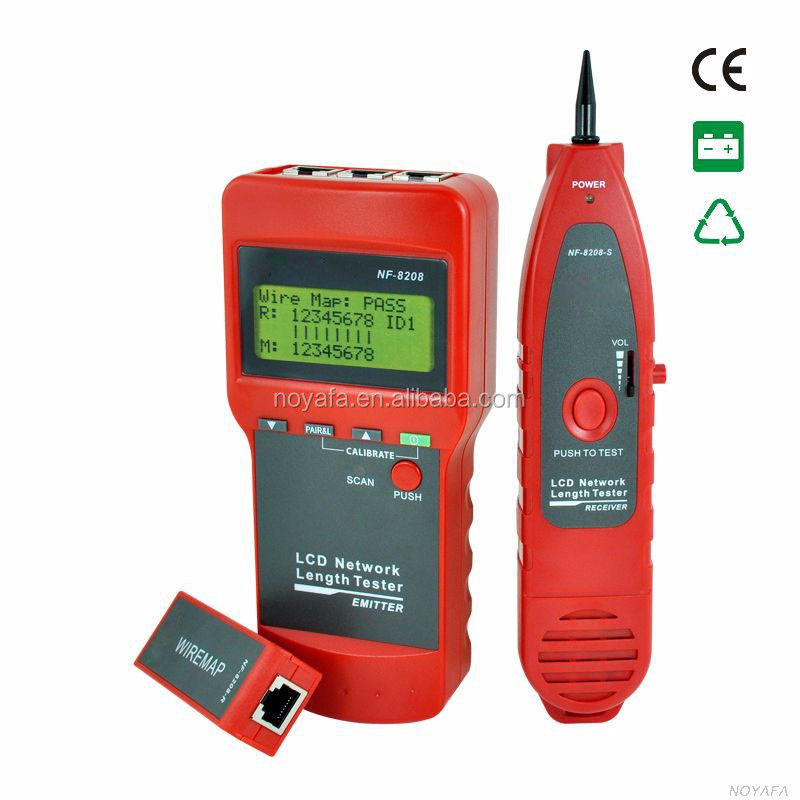

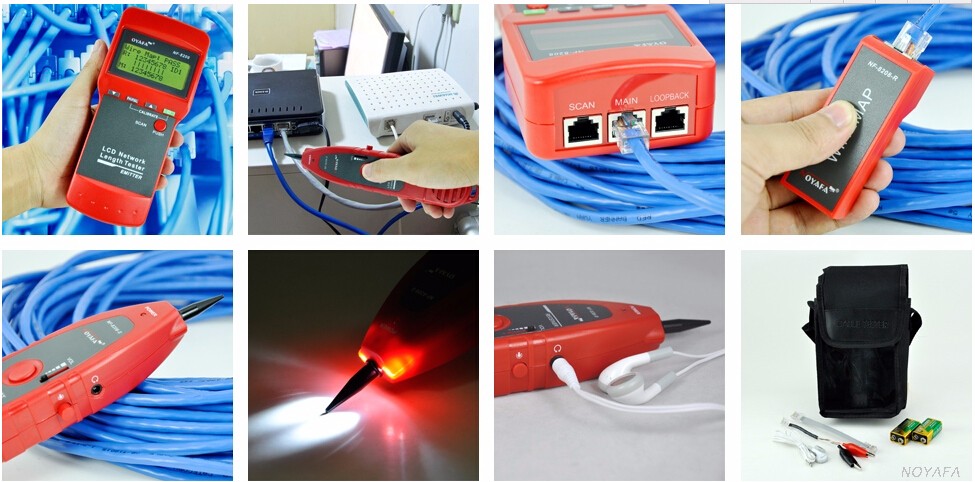

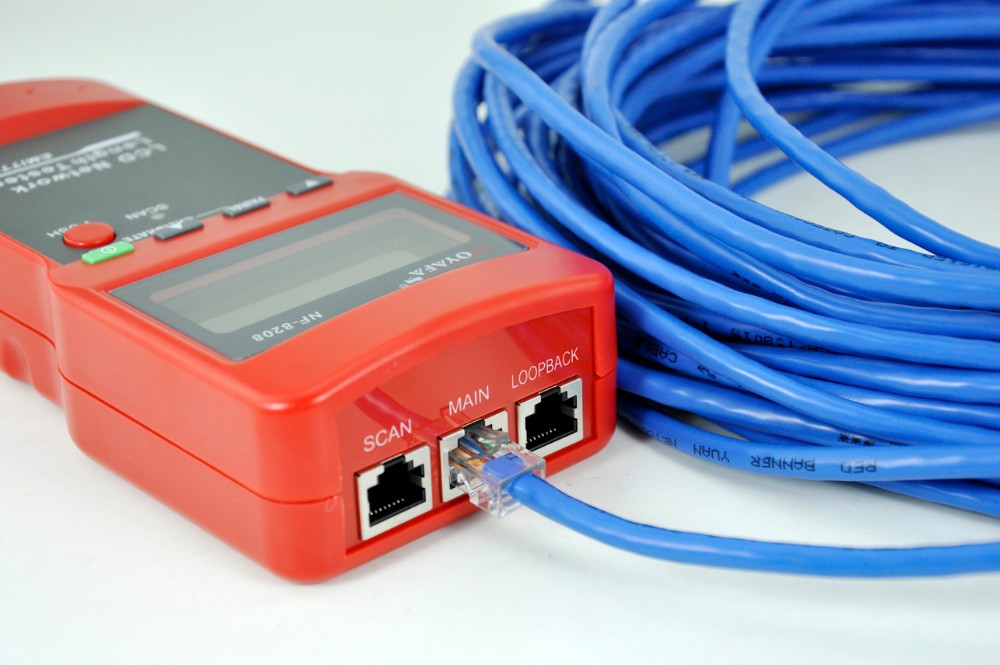

  Pictures:




Company Information

  SHENZHEN NOYAFA ELECTRONIC CO.,LIMITED is a leading brand and manufacture based in Shenzhen,China. sipplying LCD cable tester,Cable length tester, Optic multimeters, CCTV monitor tester,HD cable tester , Toolkits and Laser range finder field since in 2006.

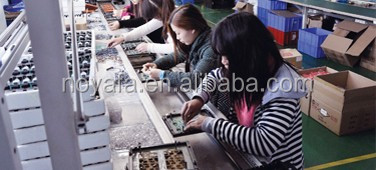

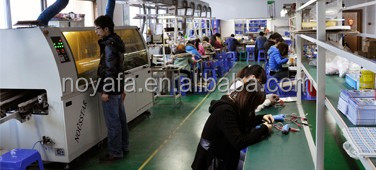

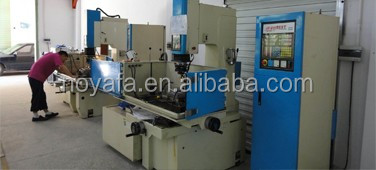

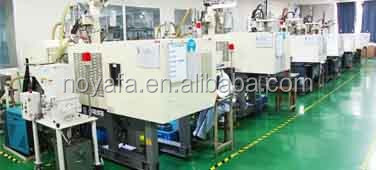

We have more than 3000 square meters factory with 3 layers and 5 prodcution lines. We also adopted the latest machinery and equipment as well as the most advance technologies to supply the raw materails by our technical operators. Some of our items received appearance of the patent in our home market and implement the agent system in every province to control the Network cabling market.


Attention:

1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
