Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: NOYAFA
  • Model Number: NF-801B
  • Power: Electronic
  • Usage: cable testing instrument
  • Product name: Wire Tracker
  • Power supply: DC 9.0V*2pcs
  • port/connector: RJ45 RJ11
  • Tracking type: UTP STP RJ45 RJ11 metal cables
  • Is customized: Yes
  • Warranty: 1 year

Packaging & Delivery

Packaging Details carton size:51*33*51cm
quantity:40pcs
weight:16.2kg
Product Description

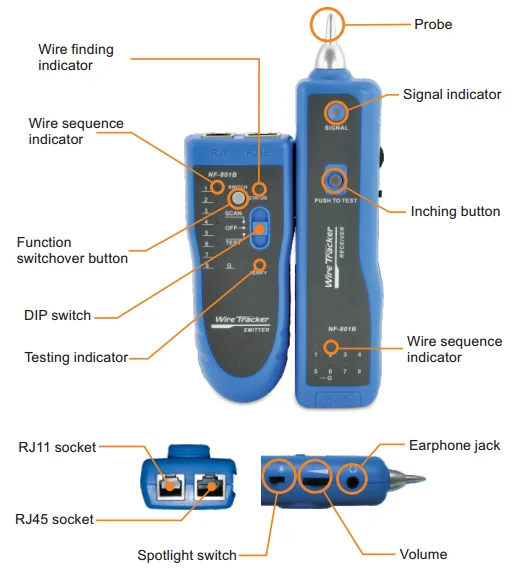

          The features of wire tracker NF-801B

1. Quickly trace and identify cables among lots of unknown cables.
2. Check continuity of Lan cables.
3. Track the cables or wires, and diagnose the breakage.
4. Visible indication: pin-to-pin cable map for individual cable (not by pairs).
5. Low Voltage alarm function.
6. Earphone permits use in noisy environments.
7. LED light assists use in dark corners.

Attention:

1.Don't connected high voltage lines to avoid buring out the machine.

2.Put into the right place to avoid hurting others,because of the sharp part.

3.Connected the cable to the right port.

4.Read the user manual before use it.

Specifications
NF-801 Transmitter specifications
 Tone frequency
 200Hz
 Max. distance of transmission
 Up to 2 kilometers
 Max. working current
 Less than 10mA
 Volume Regulate Function
 Audio volume level control
 Tone mode
 2 Tones, adjustable
 Compatible connectors
 RJ11,RJ45
 Max. signal voltage
 8Vp-p
 LED lights display
 Wiremap, tone, tracing
 Voltage protection
 AC 60V/DC 42V
 Battery Type
 DC9.0V(NEDA 1604/6F22) x 1pc
 Dimensions (LxWxD)
 15 x 3.7 x 2cm
 NF-801 Receiver specifications
 Frequency
 200kHz
 The Max. working current
 Less than 30mA
 Earphone jack
 1
 Battery Type
 DC9.0V(NEDA 1604/6F22) x1pc
 Dimensions (LxWxD)
 12.2 x 4.5 x 2.3cm

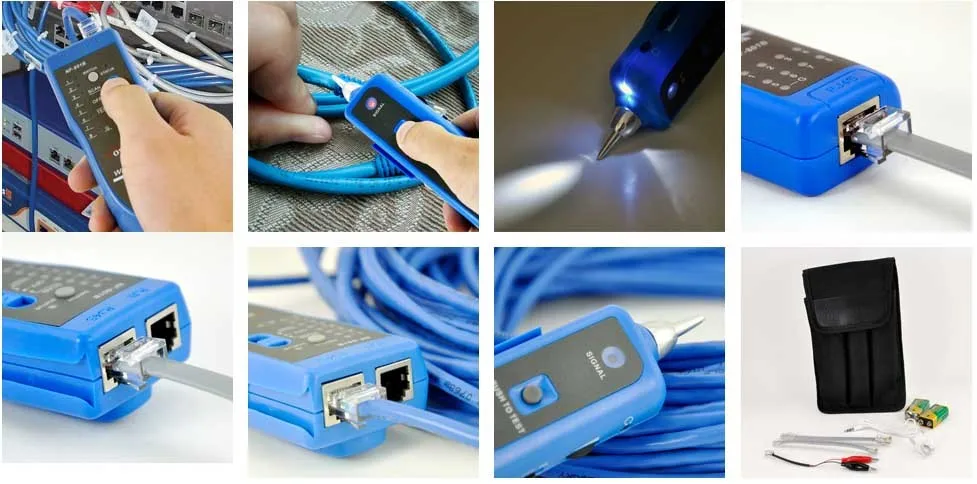

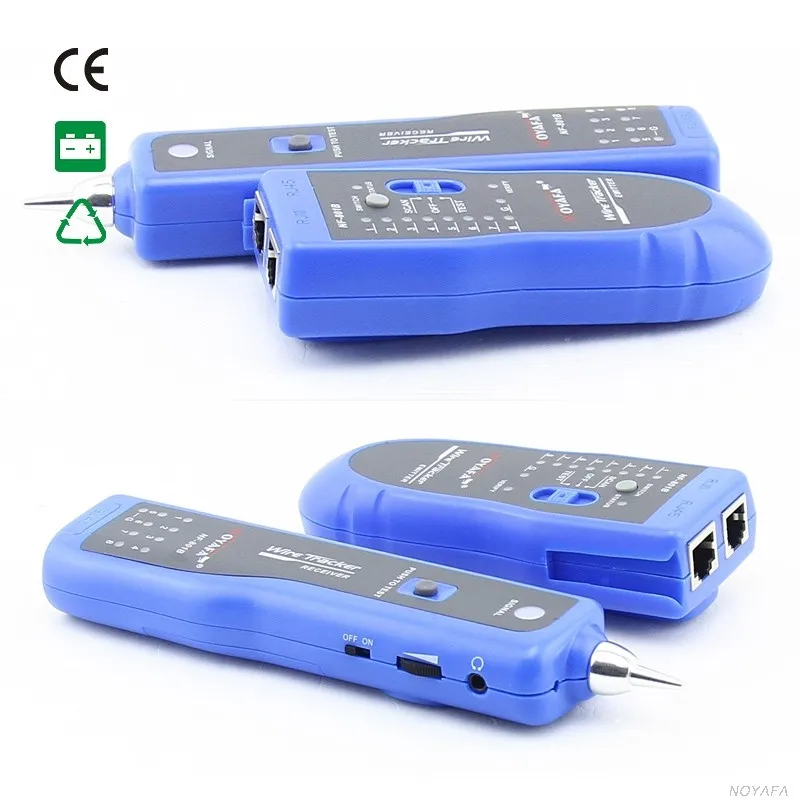

Detailed Images

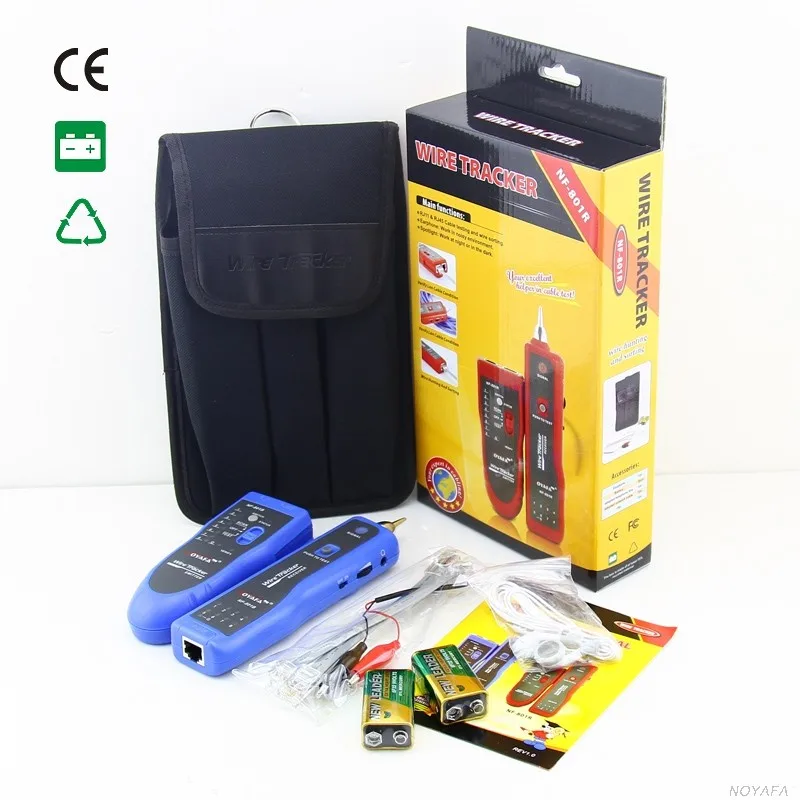

Packing & Delivery

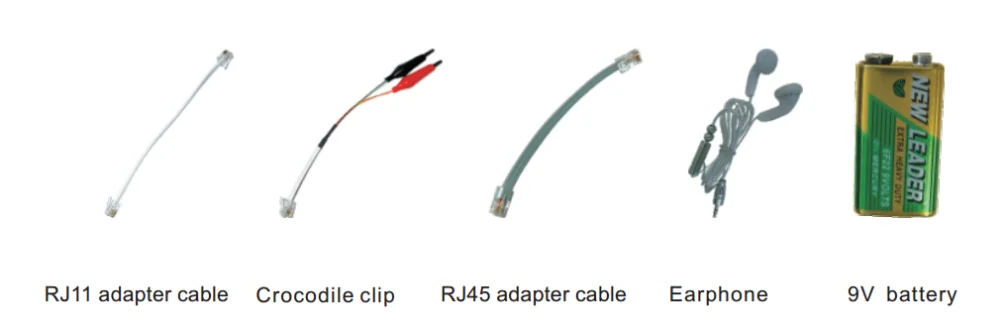

                          Packaging Details

Earphone x 1 set
Battery x 2 sets
Telephone line adapter x 1 set
Network cable adapter x 1 set
Cable clips x 1 set
                       Delivery Detail
3~5 days after the payment
Our Company
Our Service

1. Product quality

All products are guaranteed on consistency.
All products are stabilized after 24-hour aging testing.
All products are 100% inspected PASS before shipment.
All products are ensured compliance with national standards, GB4793.1-GB1094.6-96 Degrees of protection provided by enclosure, GB4793-1984 Safety requirements for electronic measuring instruments, GB191 Packaging storage and transportation signs.

2. After-sales service Clause

2.1 Responsibility
We are only responsible for the samage or loss before opening-box inspections, otherwise, it is out of our responsibility in 6 months calid from the sate of purchasing to provide with further services for repair, maintenance or replacement.
2.2 Escape Provision
The following is out of our commitment and maintenance for free:
A. No any other valid proof.
B. Unauthorized repair to misuse or removal.
C. Normal wear and tear of accessories.
D. Abnormal connection to high-voltage equipments or long-time unuse.
E. Damage or defects caused by force majeure.
F. Improper maintenance and repair.
