Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: NOYAFA
  • Model Number: NF-268
  • Usage: cable testing instrument
  • Product name: Wire Tracker
  • Power supply: DC 9.0V*2pcs
  • port/connector: RJ45 RJ11 BNC

Packaging & Delivery

Packaging Details carton size:51*33*51cm
quantity:40pcs
weight:18kg
Product Description

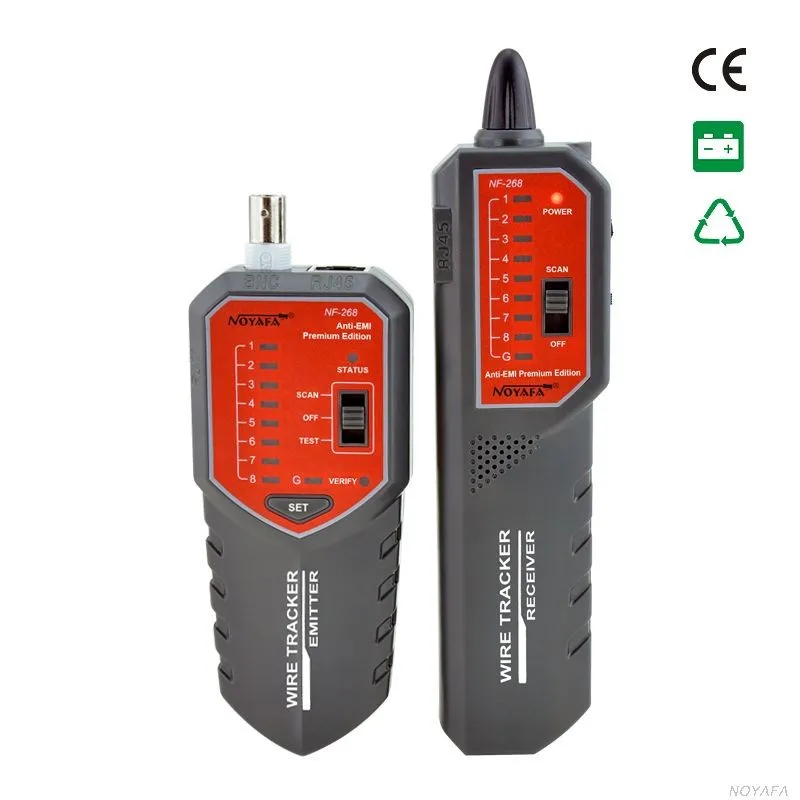

          The features of wire tracker NF-268
1. Quickly tracing & find Lan/telephone/coax cable which is connected with switch or router.
2. Check wiremap of Lan cable with receiver directly after it is found.
3. Tone tracing breakge points of Lan cables and metal lines.
4. Noise avoidable, working better against electromagnetic interference even connected to switch or router.
5. RJ45/RJ11/BNC and other ports are included and the complex switch is not required.
6. Endurable high pressure and self-protection ability.

Attention:

1.Don't connected high voltage lines to avoid buring out the machine.

2.Put into the right place to avoid hurting others,because of the sharp part.

3.Connected the cable to the right port.

4.Read the user manual before use it.

Specifications
NF-268 Transmitter specifications
 Tone frequency
200Hz
Max. distance of transmission
More than 3 kilometers
Max. working current
Less than 10mA
Tone mode
2 Tones,adjustable
Compatible connectors
 RJ11, RJ45,BNC
Max. signal voltage
8Vp-p
Function and faults light display
Light display(Wiremap, tone,tracing)
Voltage protection
 AC 60V/DC 42V
Battery type
DC9.0V(NEDA 1604/6F22 DC9V x 1pcs)
Dimension(LxWxH)
13x4x2cm
NF-268 Receiver specifications
Frequency
200kHz
The Max. working current
Less than 30mA
Earjack
1
Battery Type
DC9.0V(NEDA 1604/6F22 DC9V) x1pc
Dimension(LxWxD)
10 x 5 x 2.3cm

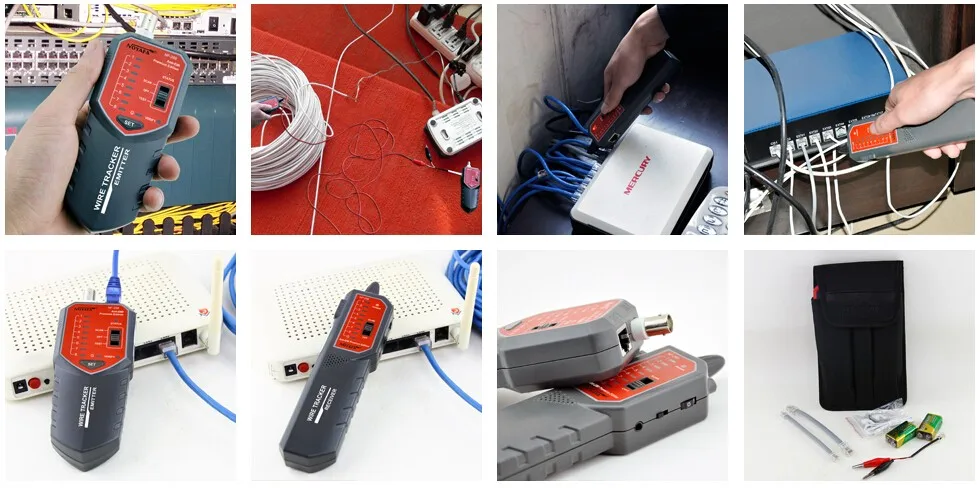

Detailed Images
Packing & Delivery

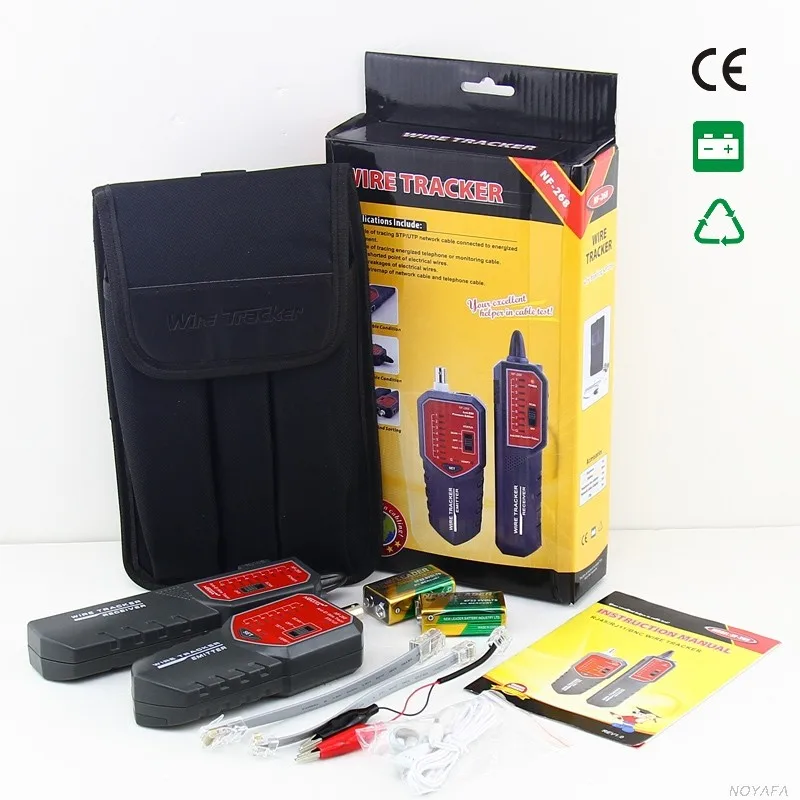

                          Packaging Details

Earphone x 1 set
Battery x 2 sets
Telephone line adapter x 1 set
Network cable adapter x 1 set
Cable clips x 1 set
                       Delivery Detail
3~5 days after the payment

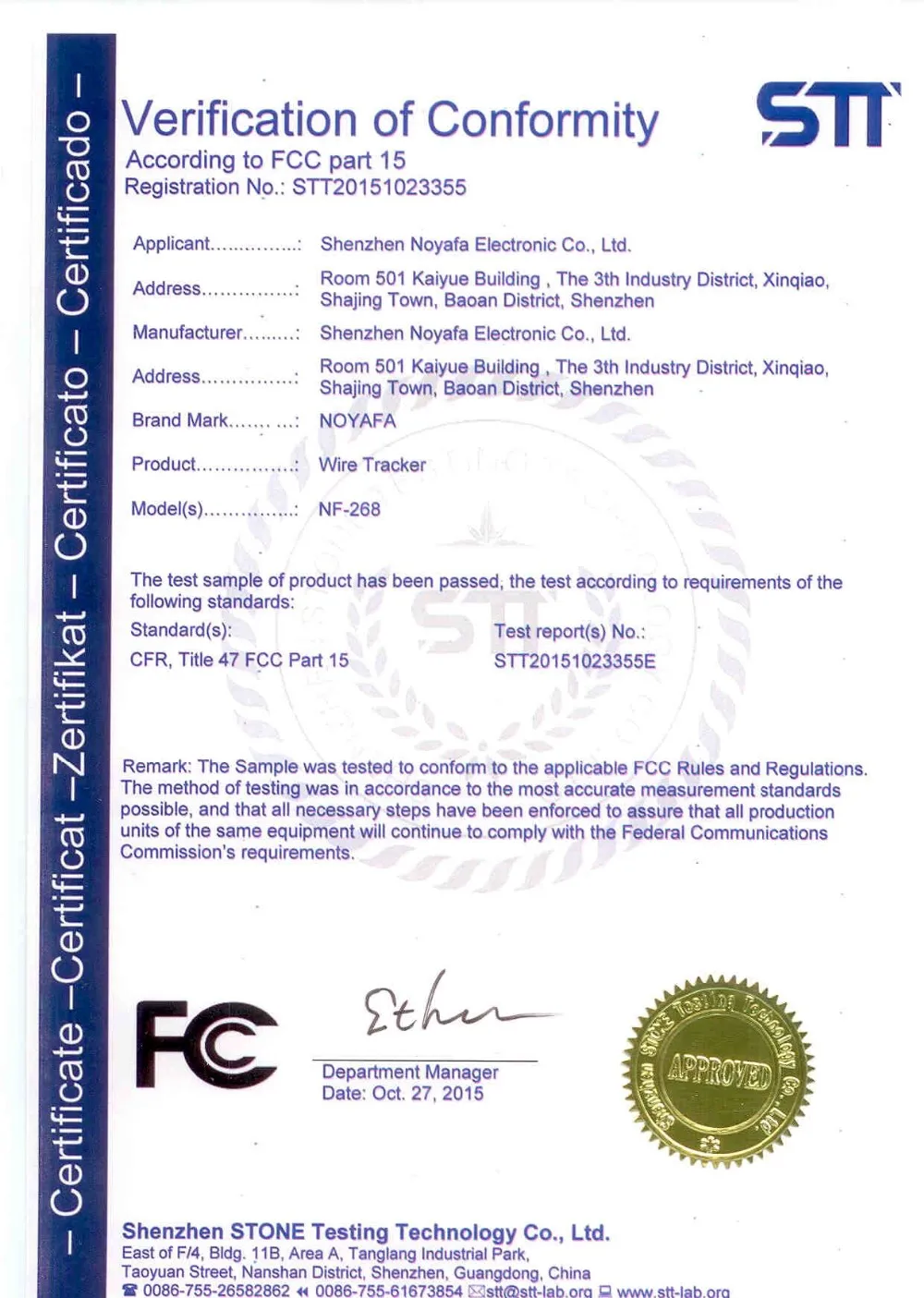

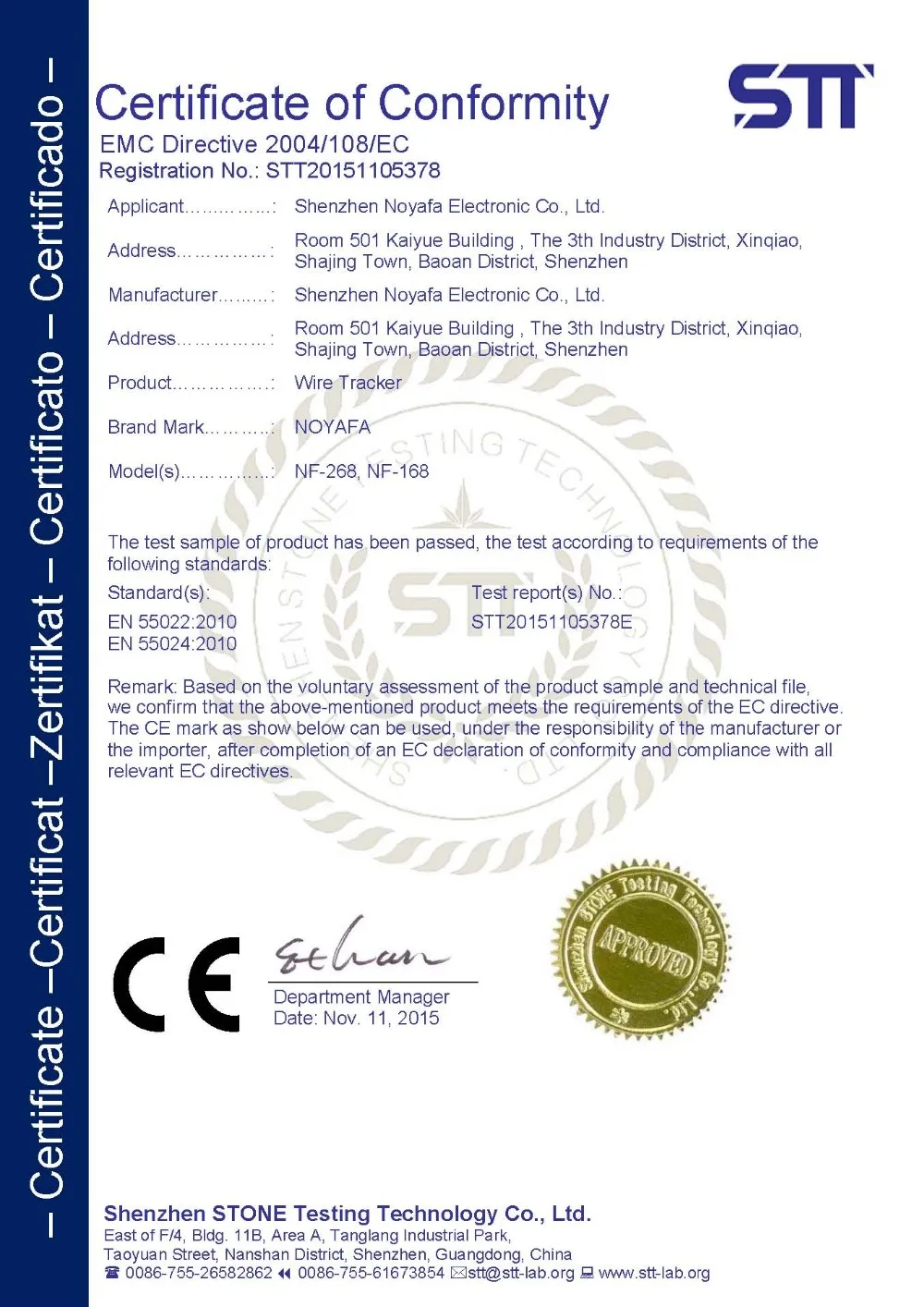

Certifications
