LCD Display Network LAN Cable Tester Wire Tracker Tracer Length Scanner NF-308

FOB Reference Price:Get Latest Price
  • 10 - 299
    US $35.00
  • >=300
    US $30.00
Supply Ability:
20000 Unit/Units per Month
Port:
SHN
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
NOYAFA
Model Number:
NF-308
Power:
Electronic
Usage:
cable testing instrucment
Name:
Wire foult loctor
port:
RJ45 RJ11 USB BNC
wiremap:
RJ45 RJ11 USB BNC
wire finder:
RJ45 RJ11 USB BNC and coaxial cable
test cable length:
network cable
Certificate:
CE ISO
Color:
Blue red
Is customized:
yes
Power supply:
DC 9.0V
Packaging & Delivery
Packaging Details
Carton size: 48.8*43.5*44.5cm
Quantity: 30pcs/ctn
Weight: 22.2kg
Product Description

1. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.

2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.

3. Locate the wiring or connection error.

4. Measure cable length and determine the distance of breakage point.

5. Automatically time-delay shut off and backlight display function.

6. Single board computer software watchdog design and reliable operation.

7. Verify RJ45 and BNC conductors.

Benefits

1.Light weight, easy to handle.

2.Verifies RJ451 and BNC conductors.

3.Enables cables to be located even when totally conclealed.

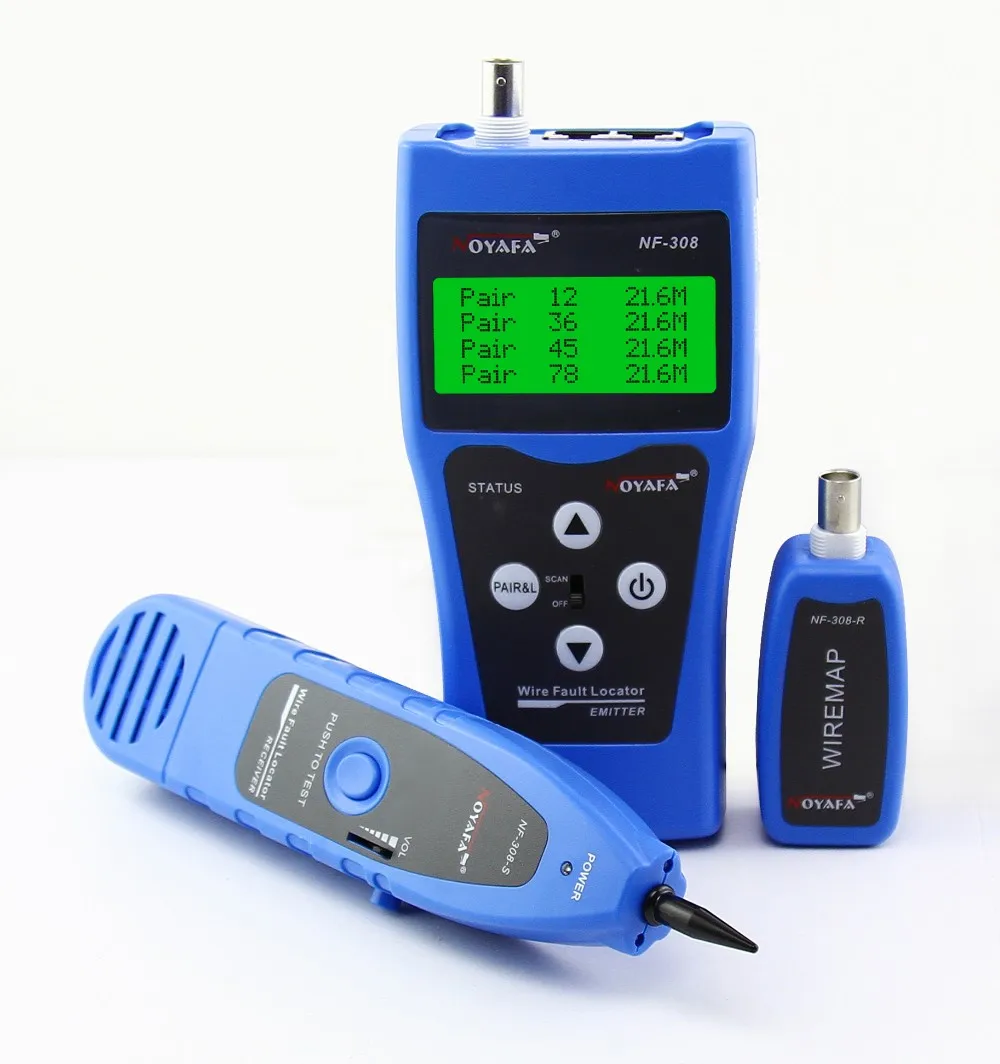

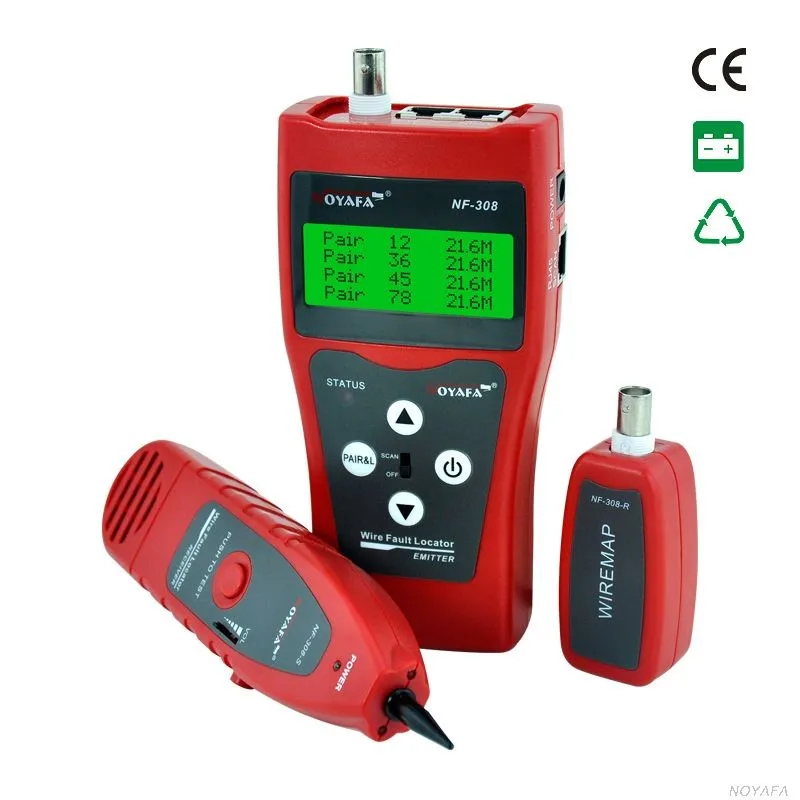

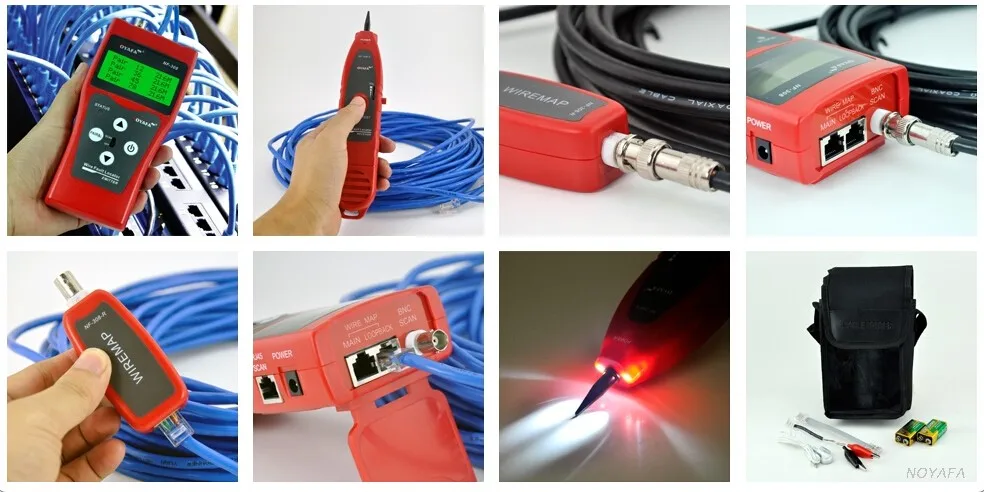

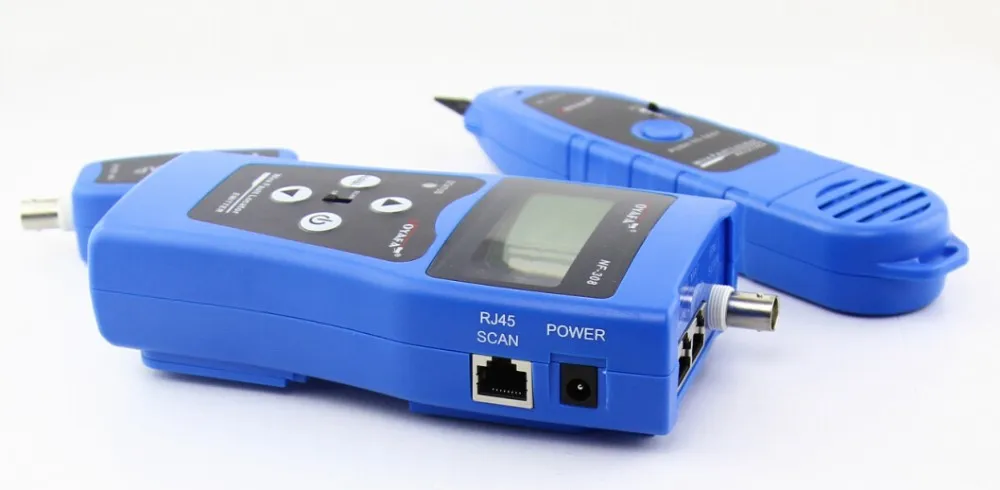

Detailed Images
Specification
NF-308 Transmitter specifications
 Indictor
 LCD 53x25 mm, with back light
 Tone frequency
 225 Hz
 Max. distance of transmission
 2 km
 Max. distance of cable map
 300m
 Max. working current
 Less than 70mA
 Tone mode
 2 Tone adjustable

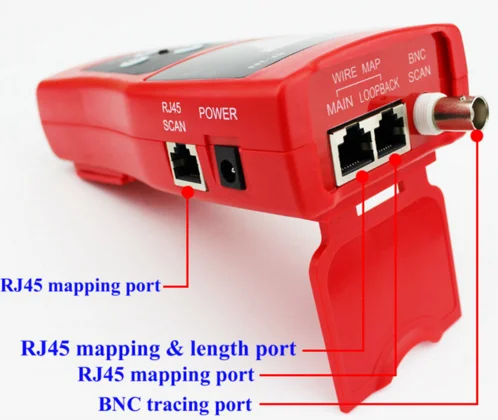

 Compatible connectors
 RJ11,RJ45,Coacial, USB
 Max. signal voltage
 15Vp-p
 Function selection
 3 position buttons & 1 power switch
 Function and faults LCD display
 LCD display ( wiremap, Tone, short, , No adapter, Low  battery )
 Cable map indication
 LCD (#1-#8)
 Shielded indication
 LCD ( #9)
 Voltage protection
 AC 60V/DC 42V

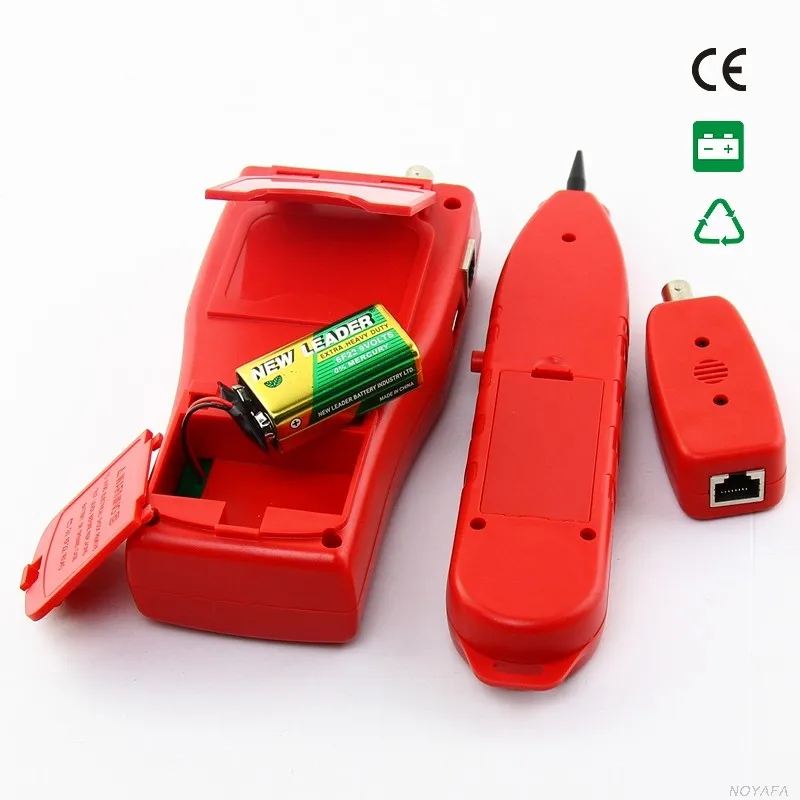

 Battery Type
 DC9.0V(NEDA 1604/6F22 DC9V x 1pcs)
 Dimension(LxWxD)
 185x80x32mm

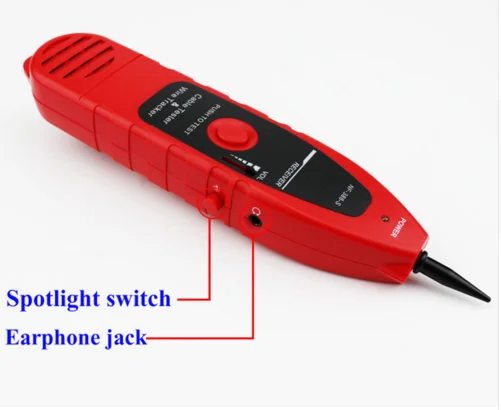

 NF-308 Receiver specifications
 Frequency
 225kHz
 The Max. working current
 Less than 70mA
 Earjack
 1
 LED illumination
 2
 Battery Type
 DC9.0V(NEDA 1604/6F22 DC9V) x1pc
 Dimension(LxWxD)
 218x46x29 mm
 NF-308 Remote unit specifications
 Compatible connectors
 RJ11,RJ45,Coacial, USB
 Dimension(LxWxD)
 107x30x24mm

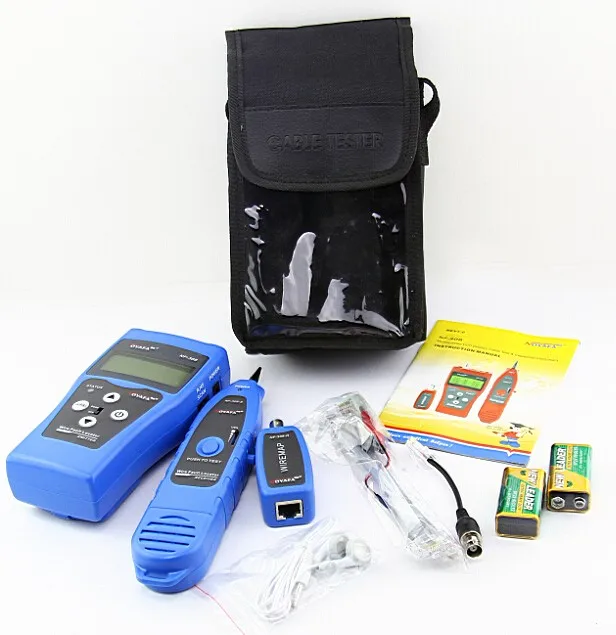

Packing & Delivery
                        Packing Details

Earphone x 1 set
Battery x 2 sets
Telephone line adapter x 1 set
Network cable adapter x 1 set
Coax cable adapter x 1 set
Cable clips x 1 set
                        Delivery Details
3-5 days after payment
