Quick Details

  • Place of Origin: Guangdong, China (Mainland), Shenzhen.China
  • Brand Name: NOYAFA
  • Model Number: NF-8601W
  • Power: Electronic, 3.7V lithium battery
  • Usage: cable length tester
  • Port: RJ45, RJ11, BNC, PING/POE
  • Test length: RJ11,RJ45 ,BNC
  • Tracking Type: RJ45, RJ11, BNC and Metal Cable
  • Warranty: 1 Year

Packaging & Delivery

Delivery Time Shipped in 2 days after payment

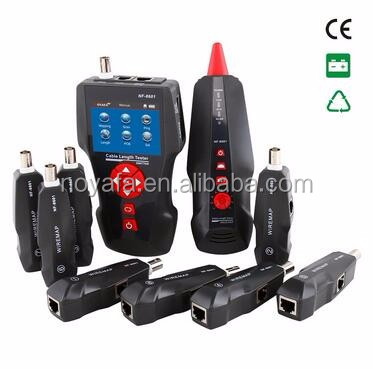

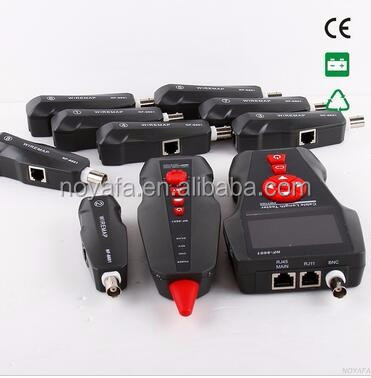

          High Quality Tone Generator cable tracker length tester with POE & PING

Main functions :

* Check the PING , POE and cross-talk functions for Network cable.
* Hunt the target cable from a bundle of cables , such as RJ11 / RJ45 / BNC.
* Under the situation of connecting Ethernet switches / router to find target cable.
* Locate the short circuit location for 2 cores cable.
* Test the RJ11 , RJ45 , BNC cable length under open circuit.
* Wiremap the short , open , cross , reverse circuit for RJ11 / RJ45 / BNC cables .

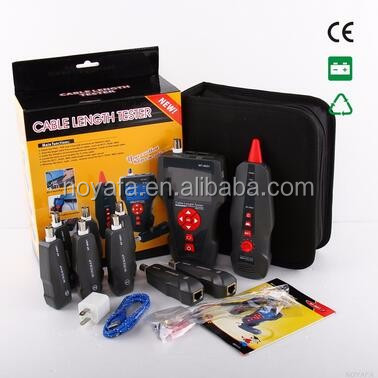

Accessories Included:

earphone x 1 set
battery x 2 sets
telephone line adapter x 1 set
network cable adapter x 1 set
Cable clips x 1 set

Technical indexes

NF-8601 Transmitter specifications
IndictorLCD 320x240 mm, with back light
Cable test typesSTP/UTP 5E,6E network , telephone , coacial
Max. distance of wiremap 2000 m
Max. distance of hunting for RJ111000m
Max. distance of hunting for RJ451000m
Max. distance of hunting for BNC1000m
Max. distance of cable length for RJ11 2000 m
Max. distance of cable length for RJ45 2000 m
Max. distance of cable length for BNC 2000 m
Min. distance of calibration10 m
Accuracy for RJ113% ( after calibration )
Accuracy for RJ455% ( after calibration )
Accuracy for BNC5% ( after calibration )
Compatible connectorsRJ11,RJ45,Coacial, PING/POE,BNC
Cable map indicationLCD (#1-#8)
Battery Type3.7V lithium battery 1800mAh
Work temperature / humidity10℃ ~ -60℃ / 0℃~270℃
Dimension(LxWxD)173x92x34mm
NF-8601 Receiver specifications
Cable huntingRJ11,RJ45, BNC
Types of cable≥ 1 cores
Earjack1
Battery Type3.7V lithium battery 1800mAh
Dimension(LxWxD)183x58x35 mm
NF-8601 Remote unit specifications
Compatible connectorsRJ11,RJ45, BNC
Dimension(LxWxD)106x32x30mm

Application pictures:

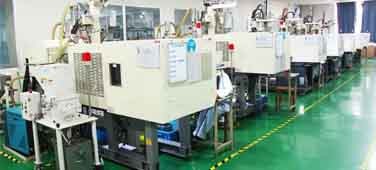

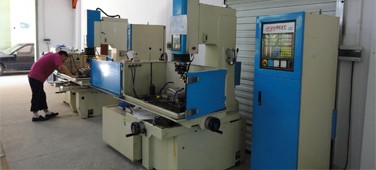

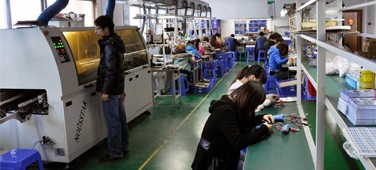

Company strength:

We have more than 3000 square meters factory with 3 layers and 5 prodcution lines. We also adopted the latest machinery and equipment as well as the most advance technologies to supply the raw materails by our technical operators. Some of our items received appearance of the patent in our home market and implement the agent system in every province to control the Network cabling market.

Attention:



1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because our item with sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
