Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: NOYAFA
  • Model Number: NF-8208
  • Power: Electronic
  • Usage: cable testing instrucment

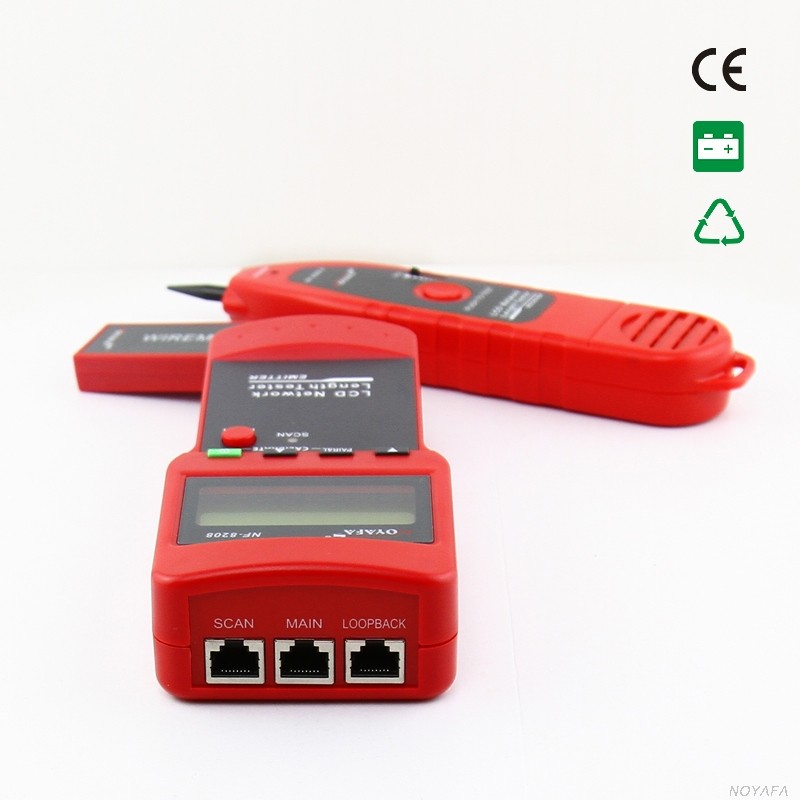

  • Name: LCD network length tester
  • port: RJ45 RJ11
  • wiremap: RJ45 RJ11
  • wire tracker: RJ45 RJ11 and coaxial cable
  • test cable length: network cable
  • Certificate: CE ISO
  • Is customized: yes
  • Power supply: DC 9.0V

Packaging & Delivery

Packaging Details * Carton size: 48.8*43.5*44.5cm
* Quantity: 30pcs/CTN
* Weight: 19.5KG
Delivery Time Shipped in 3 days after payment
Product Feature


1. Check wiring error in 5E, 6E, such as open circuit, short circuit,jumper wire, reverse connection.

2. Measure length of network cable, and locate the breakage point.

3. Self-checking function and automatically compensate any change in battery capacity or ambient temperature.

5. LCD light assists use in dark corners.

6. Enables cables to be located even when totally concealed.

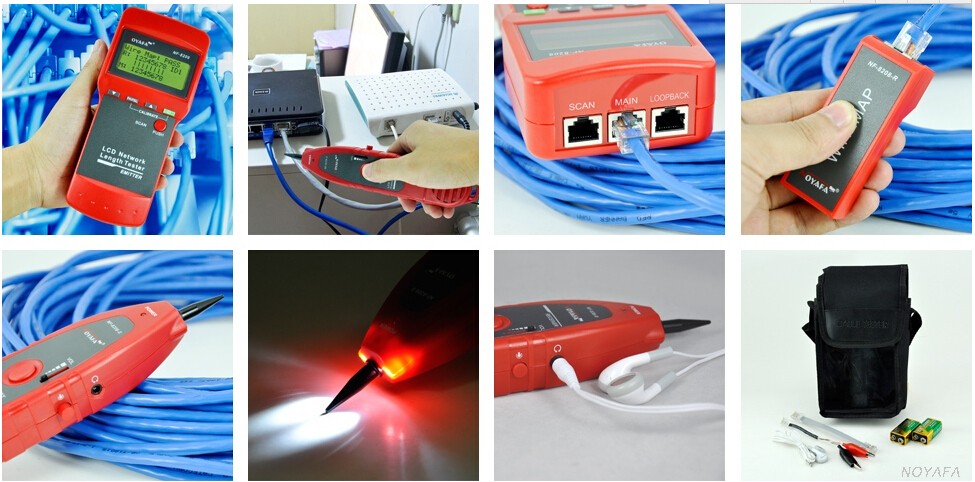

Detailed Images

More info you need,please freely contact me:

Skype:noyafa sophia liu

or any way you like!

Specification
NF-8208 Transmitter specifications
 Indictor
 LCD 53x25 mm, with back light
 Tone frequency
 225 Hz
 Max. distance of transmission
 2 km
 Max. distance of cable map
 300m
 Max. working current
 Less than 70mA
 Tone mode
 2 Tone adjustable
 Compatible connectors
 RJ45
 Max. signal voltage
 15Vp-p
 Function and faults LCD display
 LCD display ( wiremap, Tone, short, , No adapter, Low  battery )
 Cable map indication
 LCD (#1-#8)
 Shielded indication
 LCD ( #9)
 Voltage protection
 AC 60V/DC 42V
 Battery Type
 DC9.0V(NEDA 1604/6F22 DC9V x 1pcs)
 Dimension(LxWxD)
 185x80x32mm
 NF-8208 Receiver specifications
 Frequency
 225kHz
 The Max. working current
 Less than 70mA
 Earjack
 1
 LED illumination
 2
 Battery Type
 DC9.0V(NEDA 1604/6F22 DC9V) x1pc
 Dimension(LxWxD)
 218x46x29 mm
 NF-8208 Remote unit specifications
 Compatible connectors
 RJ45
 Dimension(LxWxD)
 107x30x24mm
Packing & Delivery

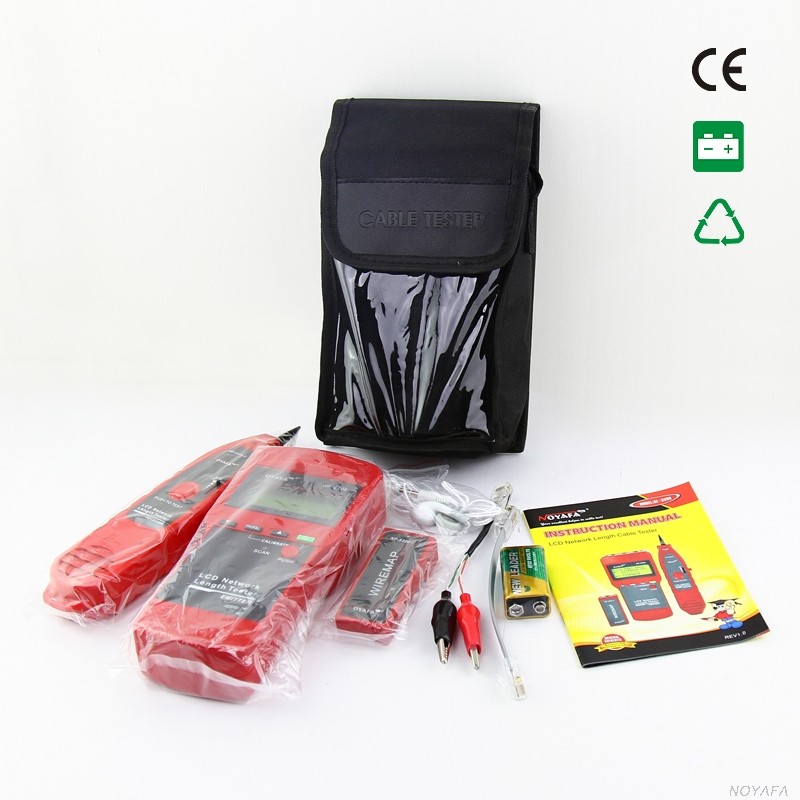

                        Packing Details
* Earphone 1pc

* Battery 1pcs

* Clip 1pc

* Adapted network cable 1pc
                        Delivery Details
3-5 days after payment
Our Company

SHENZHEN NOYAFA ELECTRONIC CO.,LIMITED is a leading brand and manufacture based in Shenzhen,China. sipplying LCD cable tester,Cable length tester, Optic multimeters, CCTV monitor tester,HD cable tester , Toolkits and Laser range finder field since in 2006.

NOYAFA this brand for differend product lines in network cabling, and has been developing it's prodcut line and expanding it's business with the policy of innovation , quanlity and service with customers all over the world.

After years of development, the company has created a wealth of experience in sales and after-sales service team. Manufacturers and users in the formation of a very high reputation. At present, Our products are exporting to all over the world,especially to Europe,Asian,America. No matter where or when, customers' satisfactory is our eternal pursuit and goal.

Company strength

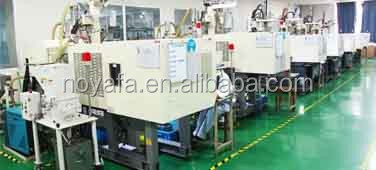

We have more than 3000 square meters factory with 3 layers and 5 prodcution lines. We also adopted the latest machinery and equipment as well as the most advance technologies to supply the raw materails by our technical operators. Some of our items received appearance of the patent in our home market and implement the agent system in every province to control the Network cabling market.
