Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Noyafa
  • Model Number: NF-8601W
  • Power: Electronic
  • Usage: lcd cable length tester
  • Product name: LCD cable length tester
  • Color: black
  • Is customized: yes
  • Port: RJ45, RJ11, BNC, USB,PING ,POE
  • test length: RJ11,RJ45 ,BNC
  • Tracking type: RJ45, RJ11, BNC and Metal Cable
  • Other function: TF function
  • Power supply: 3.7V lithium battery
  • Warranty: 1 Year

Packaging & Delivery

Packaging Details Carton size:48.8x43.5x44.5 cm
Quantity : 30pcs/ctn
Weight: 20.23kg
Delivery Time 3 to 5days after received payment
Product Description

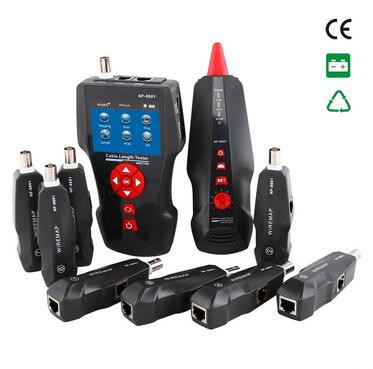

  Network cable IQ Lan BNC cable tester wire fault locator voltage electricity cable locator with 8 reomotes

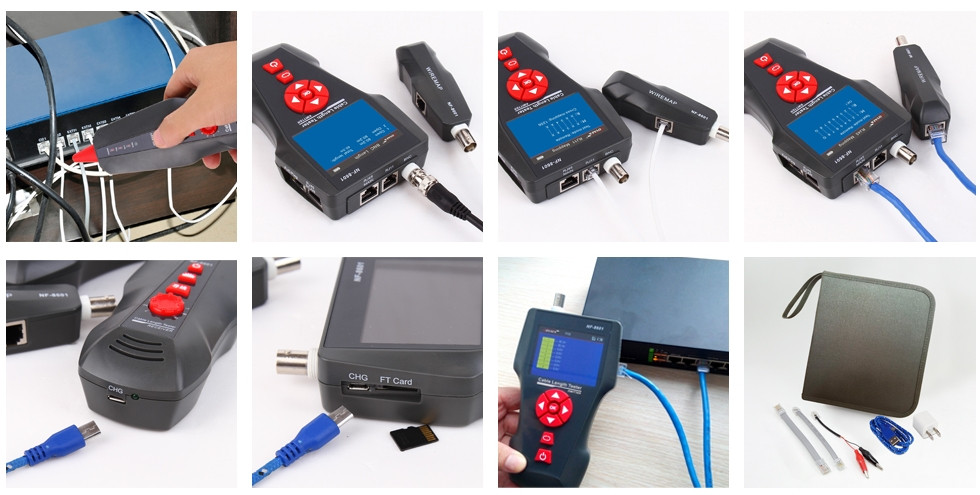

 Main functions:

1.Check the PING , POE and cross-talk functions for Network cable.
2.Hunt the target cable from a bundle of cables , such as RJ11 / RJ45 / BNC.
3.Under the situation of connecting Ethernet switches / router to find target cable.
4.Locate the short circuit location for 2 cores cable.
5.Test the RJ11 , RJ45 , BNC cable length under open circuit.
6.Wiremap the short , open , cross , reverse circuit for RJ11 / RJ45 / BNC cables .
Technical indexes:



NF-8601W Transmitter specifications
IndictorLCD 320x240 mm, with back light
Cable test typesSTP/UTP 5E,6E network , telephone , coacial
Max. distance of wiremap2000 m
Max. distance of hunting for RJ111000m
Max. distance of hunting for RJ451000m
Max. distance of hunting for BNC1000m
Max. distance of cable length for RJ112000 m
Max. distance of cable length for RJ452000 m
Max. distance of cable length for BNC2000 m
Min. distance of calibration10 m
Accuracy for RJ113% ( after calibration )
Accuracy for RJ455% ( after calibration )
Accuracy for BNC5% ( after calibration )
Compatible connectorsRJ11,RJ45,Coacial, PING/POE,BNC
Cable map indicationLCD (#1-#8)
Battery Type3.7V lithium battery 1800mAh
Work temperature / humidity10℃ ~ -60℃ / 0℃~270℃
Dimension(LxWxD)173x92x34mm
NF-8601W Receiver specifications
Cable huntingRJ11,RJ45, BNC
Types of cable≥ 1 cores
Earjack1
Battery Type3.7V lithium battery 1800mAh
Dimension(LxWxD)183x58x35 mm

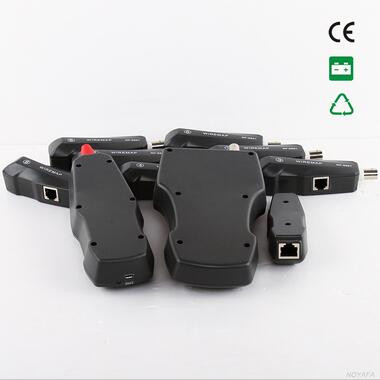

NF-8601W Remote unit specifications
Compatible connectorsRJ11,RJ45, BNC
Remotes indentifier8 pcs
Dimension(LxWxD)106x32x30mm



Attention:



1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because our item with sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.





 Application:



1. 3.7V lithium battery power supply ,Convenient, durable, and durable.
2. 2.8 inches LCD Color screen ,Clear, intuitive and personalization.
3. Mian tester can save and export 160 groups of data.





Packaging & Shipping

 Packing:

 Standard carton :

Weight: 22.2kg Carton size:48.8x43.5x44.5 cm
Quantity : 30pcs/ctn
Weight: 20.23kg



Shipping:

 All shipping way is available

Our Services

 After-Sale service Commitment



1.Product quanlity

All products are guaranteed on consistency

All products are stabilized after 24-hour aging testing.

All products are 100% inspected PASS before shipment.

All products are ensured compliance with national standards, GB4793.1-GB1094.6-96 Degrees of protection provided by enclosure, GB4793-1984 Safety

requirements for electronic measuring instruments, GB191 Packaging storage and transportation signs.



2. After-sales service Clause

2.1 Responsibility

We are only responsible for the samage or loss before opening-box inspections, otherwise, it is out of our responsibility in 6 months calid from the sate of purchasing to provide with further services for repair, maintenance or replacement.
2.2 Escape Provision
The following is out of our commitment and maintenance for free:
A. No any other valid proof.
B. Unauthorized repair to misuse or removal.
C. Normal wear and tear of accessories.
D. Abnormal connection to high-voltage equipments or long-time unuse.
E. Damage or defects caused by force majeure.
F. Improper maintenance and repair.



Company Information

 SHENZHEN NOYAFA ELECTRONIC CO.,LIMITED is a leading brand and manufacture based in Shenzhen,China. sipplying LCD cable tester,Cable length tester, Optic multimeters, CCTV monitor tester,HD cable tester , Toolkits and Laser range finder field since in 2006.

NOYAFA this brand for differend product lines in network cabling, and has been developing it's prodcut line and expanding it's business with the policy of innovation , quanlity and service with customers all over the world.

After years of development, the company has created a wealth of experience in sales and after-sales service team. Manufacturers and users in the formation of a very high reputation. At present, Our products are exporting to all over the world,especially to Europe,Asian,America. No matter where or when, customers' satisfactory is our eternal pursuit and goal.
