NOYAFA RJ45 RJ11 cable length meter cable break point locator NF-8200

FOB Reference Price:Get Latest Price
  • 10 - 299
    US $43.80
  • >=300
    US $40.50
Supply Ability:
20000 Unit/Units per Month
Port:
SHN
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland), Shenzhen.China
Brand Name:
NOYAFA
Model Number:
NF-8200
Power:
Electronic
Usage:
cable testing instrucment
Name:
Network Telephone Cable Tester
Main Function:
Test Track and Measure Length of RJ11 & RJ45 Cable
wire tracker:
RJ45 ,RJ11
Testing type:
RJ45, RJ11
Certificate:
CE
Is customized:
yes
Power supply:
9V Alkaline battery
Warranty:
1 Year
Packaging & Delivery
Delivery Time
Shipped in 3 days after payment
Product Feature


* Trace and locate RJ45 (STP / 4-core) , RJ11 cables.

* Anti-jamming, capable of working on the exchanger and PC startup.

* Measure cable length for RJ45,RJ11 Cable.

* Check open, short, cross, crosstalk for RJ11,RJ45 cable.

* Locate breakage point accurately.

* Earphone permits use in noisy environments.

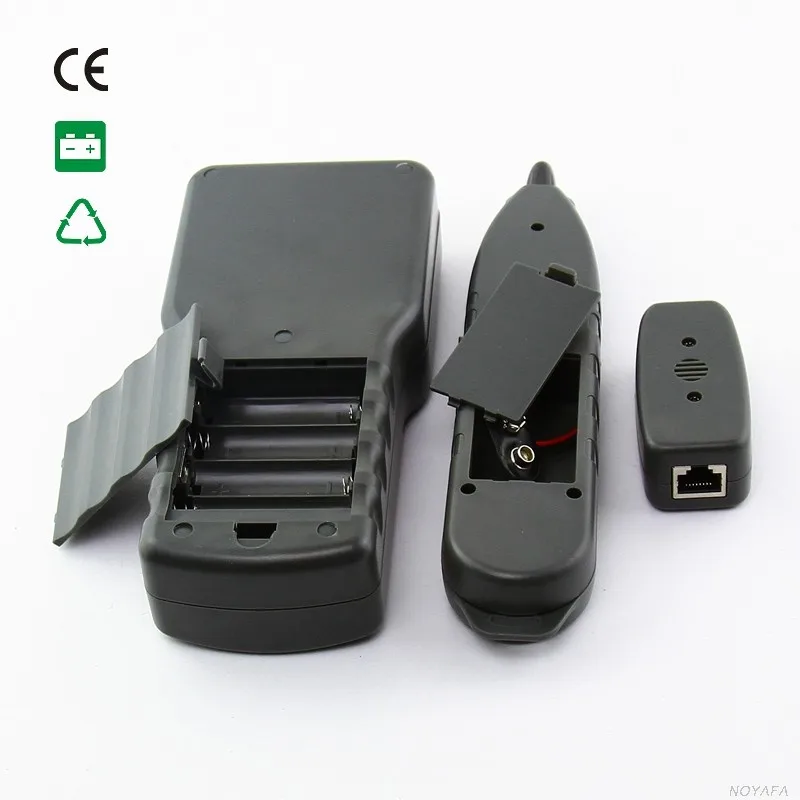

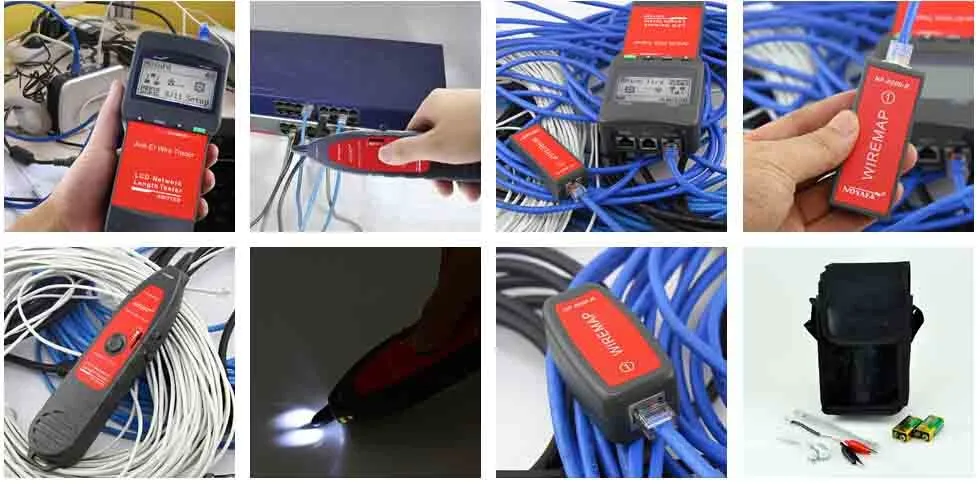

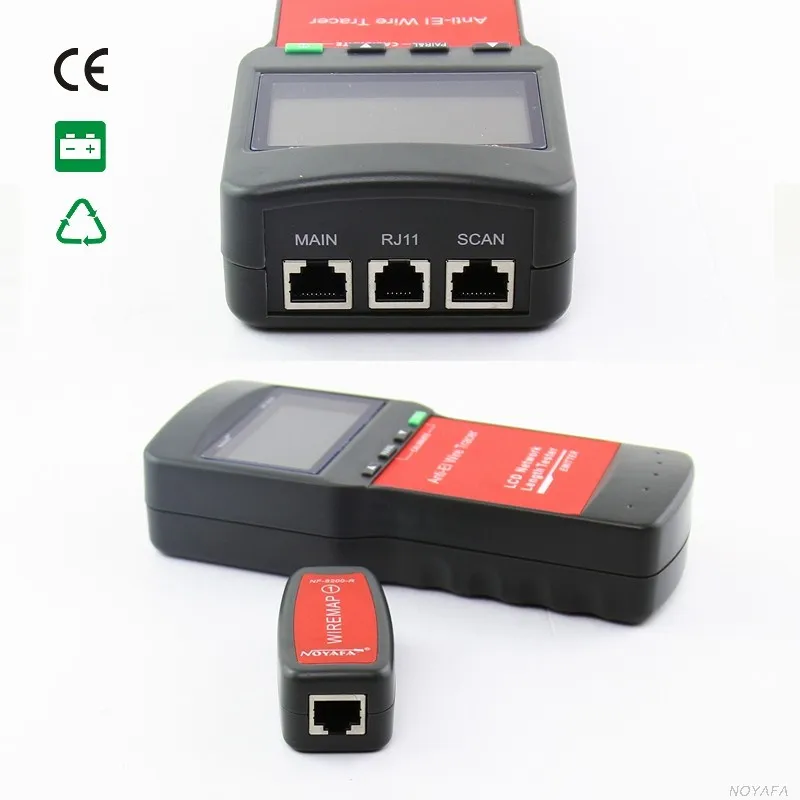

Detailed Images

More feature you need ,please contact me by skype:noyafa sophia liu,or any way you like!

Specification

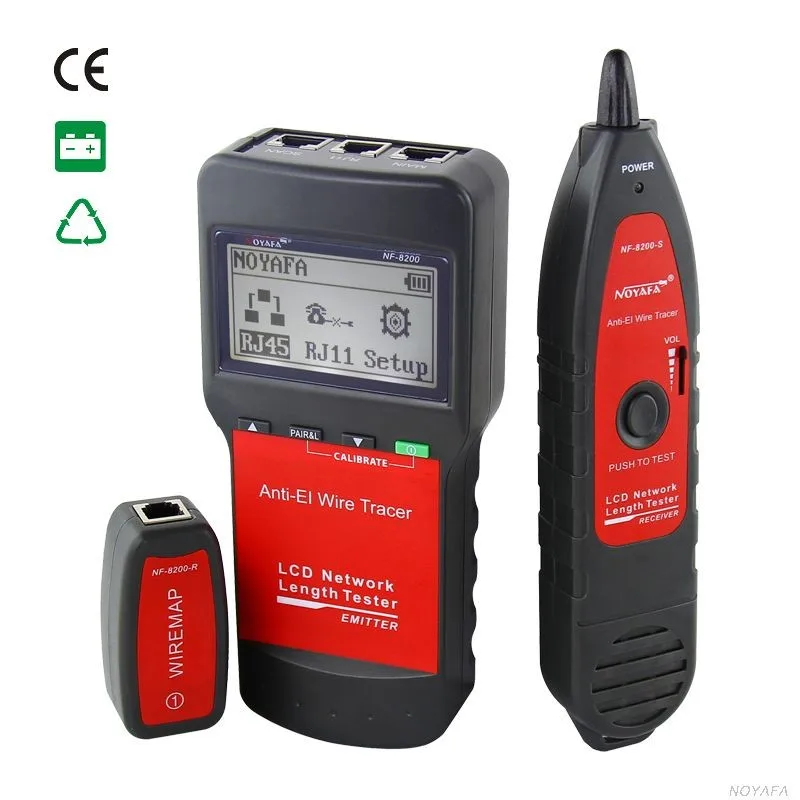

NF-8200 Transmitter specifications
 LCD screen
 53x25mm
 Tone frequency
 225Hz
 The Max. distance of tracing cable
 Electrified wire:3000m
 Non-electrified wire: 2000m
 The Max. distance of cablemapping
 2500m
 The Max. distance of cable length testing
 1000m
 Trace cable coonected to switch
 Anti-jamming
 Tone mode
 2 Tones, adjustable
 Compatible with connectors
 RJ11,RJ45
 LED lights display
 Wiremap, tone, tracing
 Cable map indication
 LCD (#1- #8)
 Shielded indication
 LCD (#9)
 Voltage protection
 AC 60V/DC 42V
 Low battery display
 LCD (6.5V)
 Battery type
 DC9.0V(NEDA 1604/6F22 DC9V) x 1pc
 Dimensions (LxWxD)
 185 x 80 x 32mm
 NF-8200 Receiver specifications
 Frequency
 225kHz
 The Max. working current
 Less than 70mA
 Earphone jack
 1
 LED illumination
 2 LEDs
 Battery type
 DC9.0V(NEDA 1604/6F22 DC9V) x 1pc
 Dimensions (LxWxD)
 218 x 46 x 29mm
 NF-8200 Remote unit specifications
 Compatible with connectors
 RJ11,RJ45
 Dimensions (LxWxD)
 107 x 30 x 24mm
Packing & Delivery

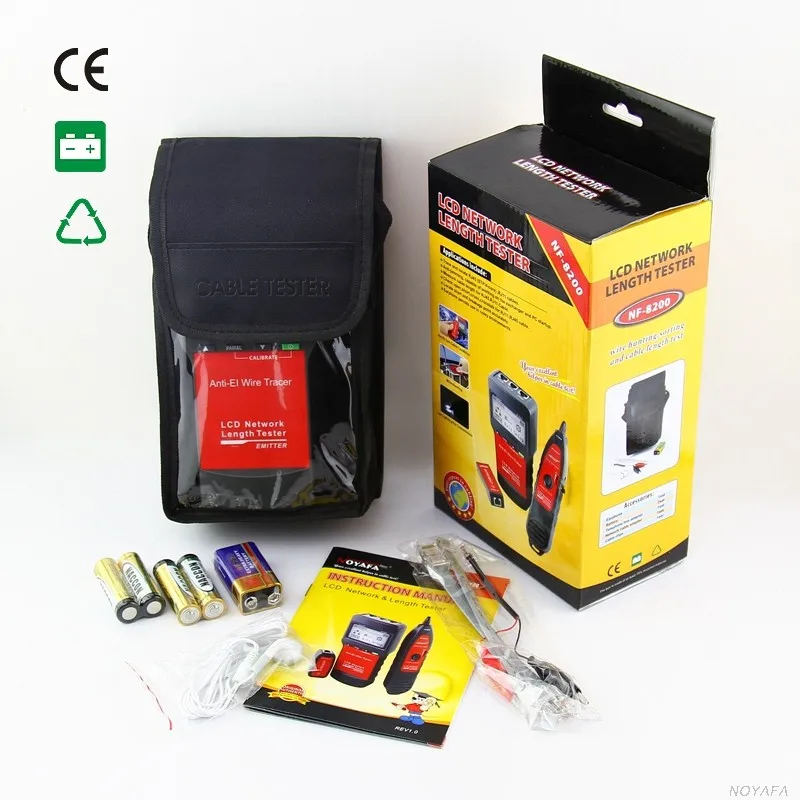

                        Packing Details
* Earphone x 1 set

* Battery x 2 sets

* Telephone line adapter x 1 set

* Network cable adapter x 1 set

* Cable clips x 1 set
                        Delivery Details
3-5 days after payment
Our Company

SHENZHEN NOYAFA ELECTRONIC CO.,LIMITED is a leading brand and manufacture based in Shenzhen,China. sipplying LCD cable tester,Cable length tester, Optic multimeters, CCTV monitor tester,HD cable tester , Toolkits and Laser range finder field since in 2006.

NOYAFA this brand for differend product lines in network cabling, and has been developing it's prodcut line and expanding it's business with the policy of innovation , quanlity and service with customers all over the world.

After years of development, the company has created a wealth of experience in sales and after-sales service team. Manufacturers and users in the formation of a very high reputation. At present, Our products are exporting to all over the world,especially to Europe,Asian,America. No matter where or when, customers' satisfactory is our eternal pursuit and goal.

Company strength

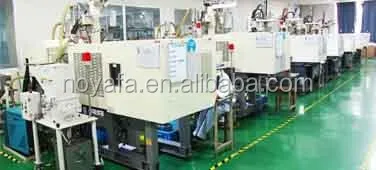

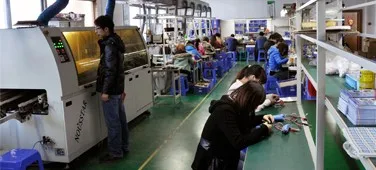

We have more than 3000 square meters factory with 3 layers and 5 prodcution lines. We also adopted the latest machinery and equipment as well as the most advance technologies to supply the raw materails by our technical operators. Some of our items received appearance of the patent in our home market and implement the agent system in every province to control the Network cabling market.
