NF-8601 POE PING Ethernet tester Tracking RJ45, RJ11, Coax Network Cable Length Tester

FOB Reference Price:Get Latest Price
  • 5 - 99 Pieces
    US $75.00
  • >=100 Pieces
    US $70.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
NOYAFA
Model Number:
NF-8601
Power:
Electronic
Usage:
networking
Certificate:
CE
Warranty:
1 Year
Port:
RJ11/RJ45/BNC/PoE/PING
Scope:
2000m
Power supply:
Lithuim battery
Package:
Carry pouch+ Giftbox /OEM Packing
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
GW: 17.0KG 20pcs/ctn
Port
Shenzhen
Lead Time :
1-7 workdays

Key Features

1. Capable to test open, short, cross connection,

2. Perform crosstalk test on network cable to solve the potential problem of slow speed.

3. Quickly find the targeted cable without stripping isolation among unknown cables.
4. Capable of scanning cable on PoE switch without damaging the device.
5
. Locate faults for RJ11/RJ45/BNC Cable;

6. Measure length of network cable, coaxial cable, telephone cable.

7. TF function to import and export data.

8. Locate breakage and short position accurately.

9. Detect PoE presence.

10. PING Testing

11. Voltage detector (50-1000V)

Benefits
1. Big LCD color screen 320*240
2. Function of storage and memory
3. Currency detection and lighting lamp
4.Automatic delay power on-off
5.Low voltge alarm function

Specification

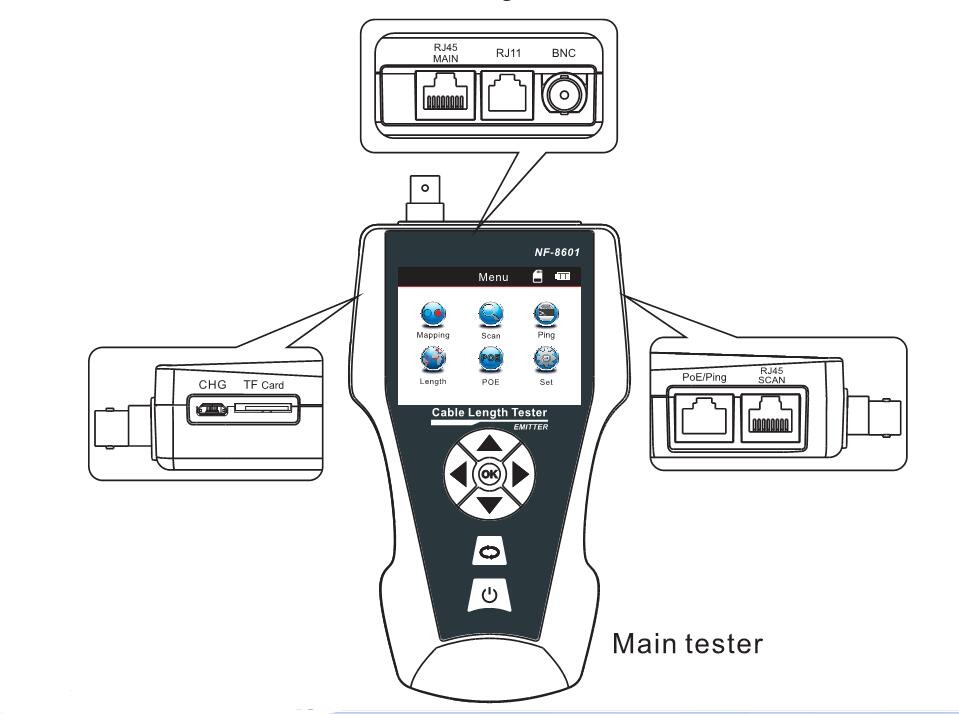

NF-8601 Transmitter specifications
LCD screen60 x 45mm
Tone frequency130KHz
The range of testing cable <2000m
Trace cable coonected to switchanti-jamming
Tone mode2 Tones, adjustable
Compatible with connectorsRJ11,RJ45,BNC, PING/PoE
Battery typeLithium battery
Dimensions (LxWxD)185 x 80 x 32mm
NF-8601 Receiver specifications
Frequency130kHz
The Max. working currentLess than 70mA
Earphone jack1
LED illumination2 LEDs
Battery typeLithium battery
Dimensions (LxWxD)218 x 46 x 29mm
NF-8601 Remote unit specifications
Compatible with connectorsRJ11,RJ45,BNC
Dimensions (LxWxD)107 x 30 x 24mm

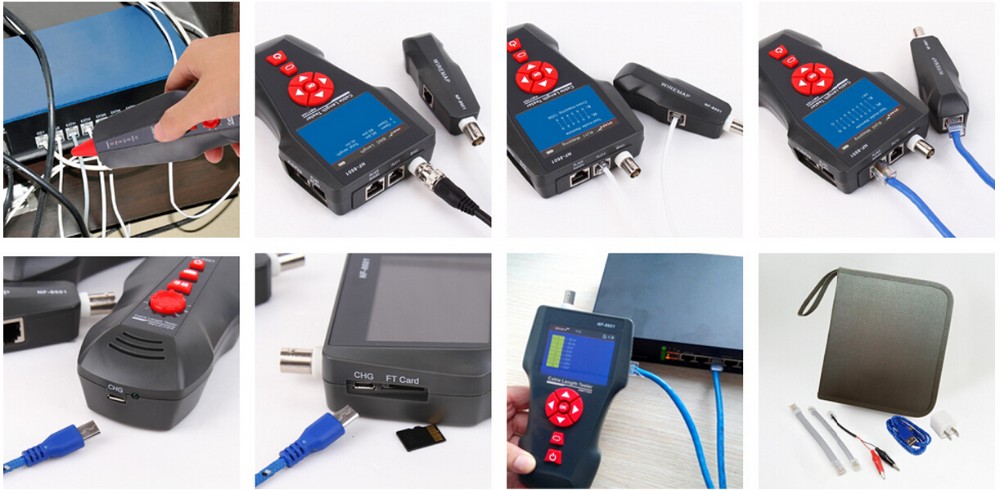

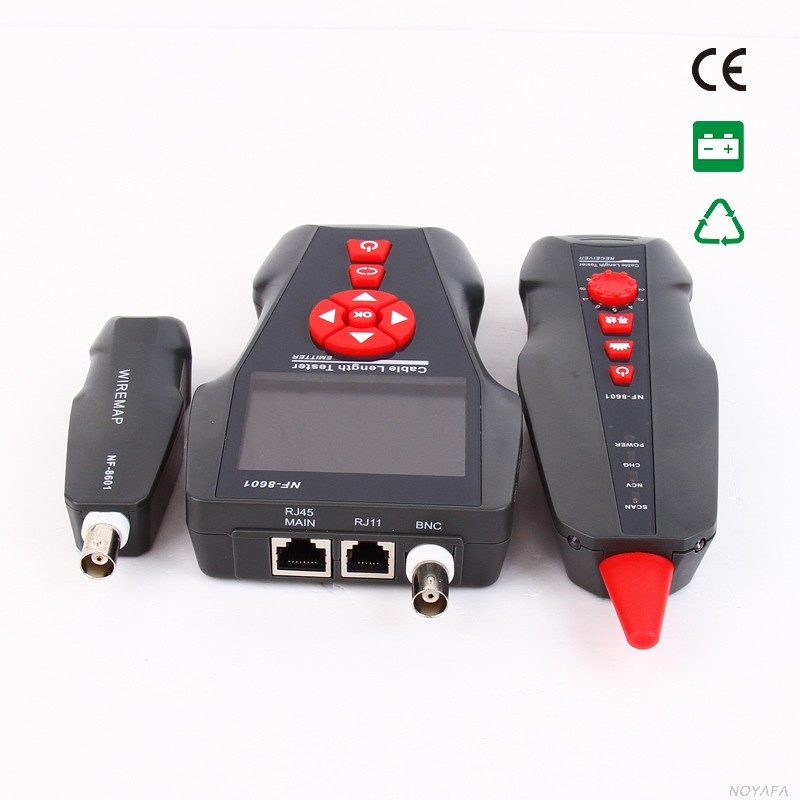

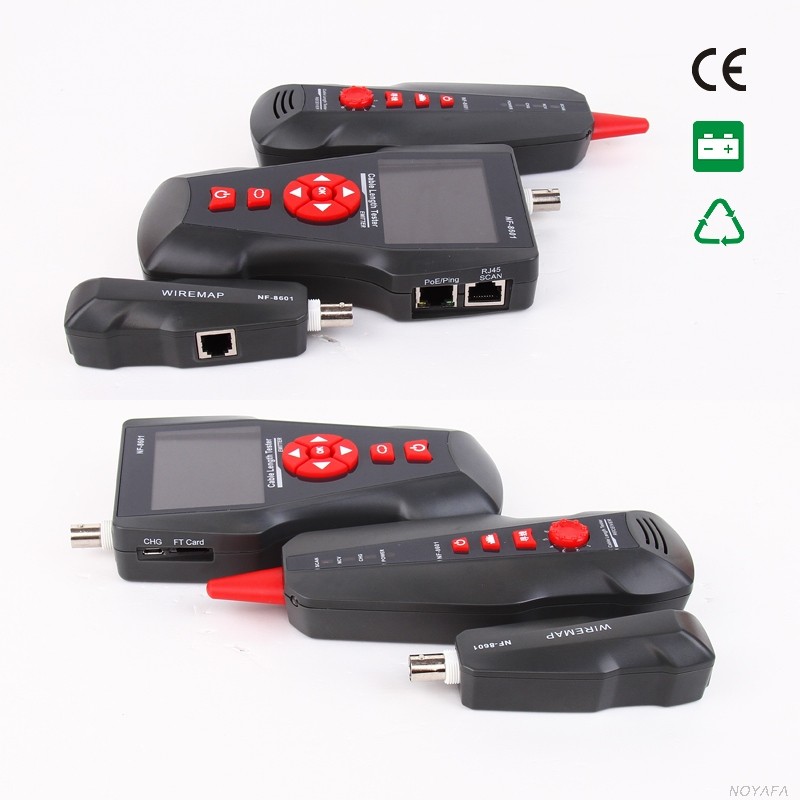

 Detailed imagesDetail images
