NOYAFA NF-388 Noyafa Multipurpose Network Cable Tracer with 8 Far - end Jacks for Test Ethernet LAN Phone USB

FOB Reference Price:Get Latest Price
  • 10 - 99 Pieces
    US $43.50
  • 100 - 999 Pieces
    US $42.00
  • >=1000 Pieces
    US $40.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland), Shenzhen.China
Brand Name:
NOYAFA
Model Number:
NF-388
Power:
Electronic, 9V Alkaline battery
Usage:
Cable testing instrument
Port:
RJ45, RJ11, BNC, USB
Wiremap Type:
RJ45, BNC Cable
Tracking Type:
RJ45, RJ11, BNC ,USB and Metal Cable
Warranty:
1 Year
Weight:
22.2kg
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton size :48.8x43.5x44.5 cm
Quantity : 30pcs/ctn
Weight: 22.2kg
Port
Shenzhen
Lead Time :
7 days
Product Description

Features.

1. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
2. Hub blink for locating network port by the flashing port light on Hub / Switch.
3. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
4. Locate the wiring or connection error.
5. Measure cable length up to 1000m and locate the breakage point.
6. polarity test function measure DC voltage (0.5-60 V).
7. Memory and storage for calibration data.
8. Automatically time-delay shut off and Low battery alarm function.
9. With 8 remote identifiers , more easy to work.




Technical Index
NF-388 Transmitter specifications
Indictor
LCD 53x25 mm, with back light
Tone frequency
225 Hz
Max. distance of transmission
1km
Max. distance of cable map
300m
Max. working current
Less than 70mA
Tone mode
2 Tone adjustable
Compatible connectors
RJ11,RJ45,BNC, USB
Max. signal voltage
15Vp-p
Function and faults LCD display
LCD display ( wiremap, Tone, short, , No adapter, Low battery )
Cable map indication
LCD (#1-#8)
Shielded indication
LCD ( #9)
Voltage protection
AC 60V/DC 42V
Battery Type
DC9.0V(NEDA 1604/6F22 DC9V x 1pcs)
Dimension(LxWxD)
185x80x32mm
NF-388 Receiver specifications
Frequency
225kHz
The Max. working current
Less than 70mA
Earjack
1
LED illumination
2
Battery Type
DC9.0V(NEDA 1604/6F22 DC9V) x1pc
Dimension(LxWxD)
218x46x29 mm
NF-388 Remote unit specifications
Compatible connectors
RJ11,RJ45, Coaxial, USB
Remote units
8
Our Company

ABOUT NOYAFA.

SHENZHEN NOYAFA ELECTRONIC CO.,LIMITED is a leading brand and manufacture based in Shenzhen,China. sipplying LCD cable tester,Cable length tester, Optic multimeters, CCTV monitor tester,HD cable tester , Toolkits and Laser range finder field since in 2006.




NOYAFA SALES TEAM.

The Noyafa team is comprised of a group of young people with vitality and positivity. They also have a positive attitude and strict style toward working along with the spirit of unity and excellent communicational skills. They work under a good atmosphere with mutual encouragement and common progress.

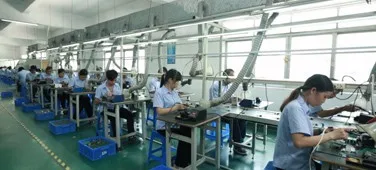

NOYAFA PRODUCT LINE.

The company currently has an over 3000 square meters factory including more than 10 production lines and it is equipped with the most advanced equipment. The excellent performance and quality of equipment has been highly favored by customers. Beyond that, Noyafa also has been approved by the ISO9001 quality certification along with CE, FCC, ROHS, REACH and other certifications.

Packing & Delivery

Packing : Standard packing

Delivery: in 1-3 days after payment done



Related Products

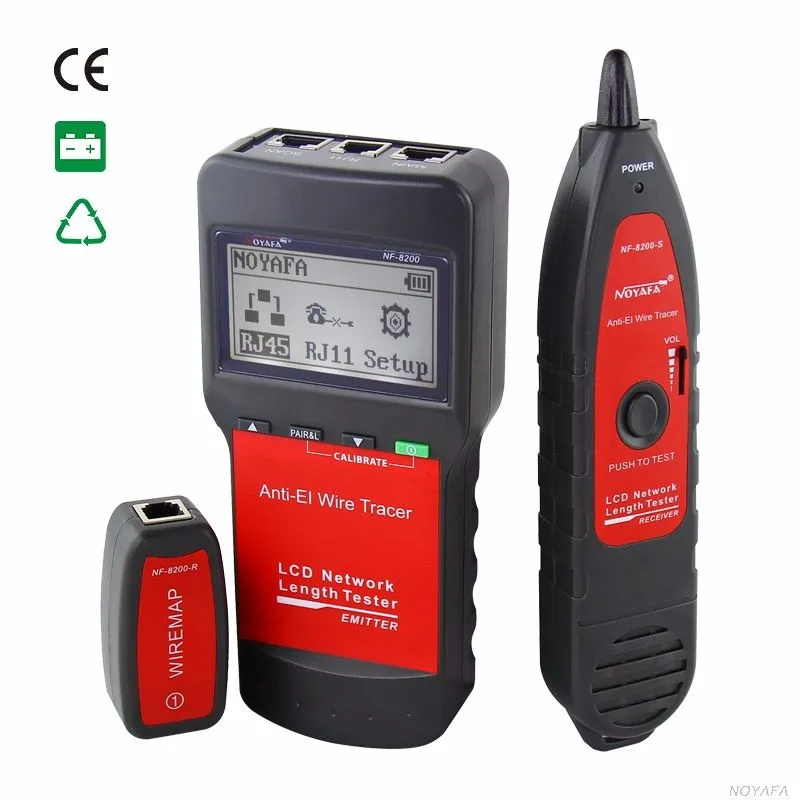

1. Trace network cable directly ;

2. Checks errors in RJ45 cable: open,short, cross ;

3. measure length of RJ45 cable, locate breakge ;

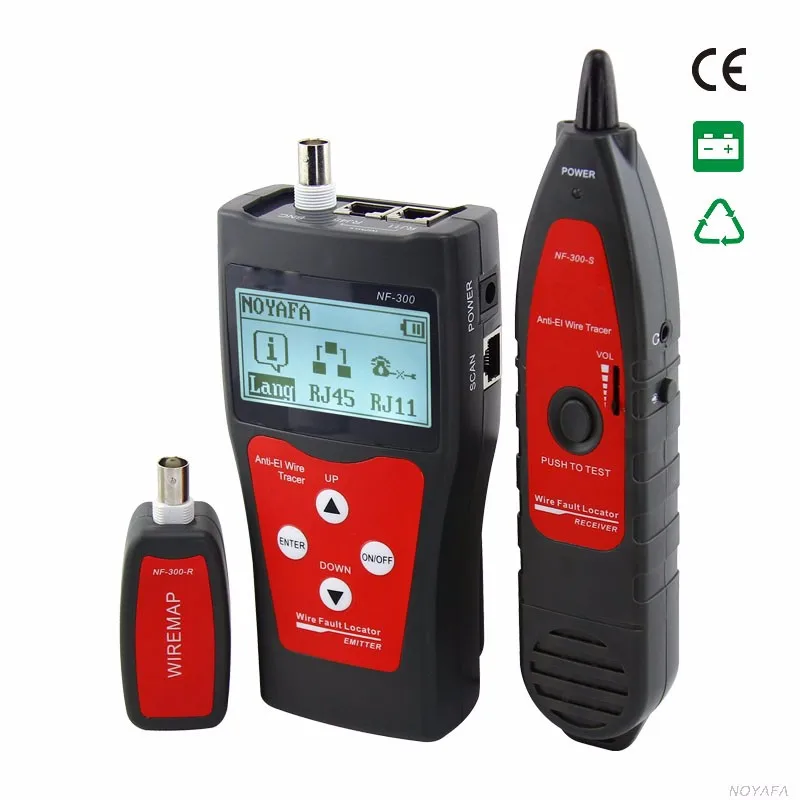

1. Trace and locate RJ45 (STP / 4-core) , RJ11,USB,BNC cables
2. Measure cable length for RJ45, BNC Cable.
3. Check open, short, cross, crosstalk for RJ45, BNC cable.
4. Locate short and breakage point accurately.
5. Memory and storage function.

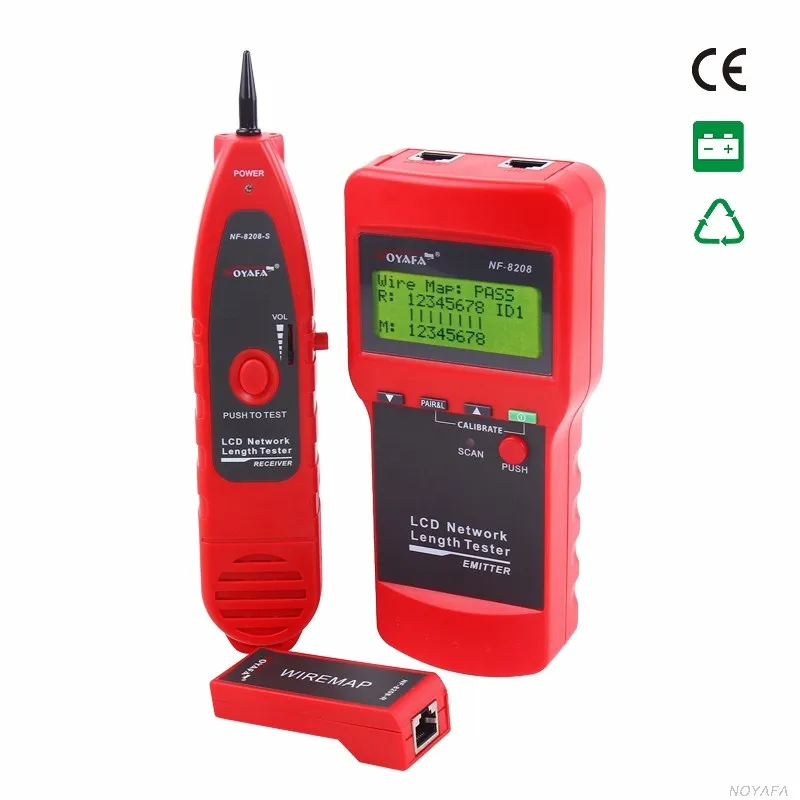

1.Trace and locate RJ45 (STP / 4-core) , RJ11 cables.
2. Measure cable length for RJ45,RJ11 Cable.
3. Check open, short, cross, crosstalk for RJ11,RJ45 cable.
4. Locate short and breakage point accurately.
5. Memory and storage function.
